Panomera® Air Blast Charger 4

Clear view with compressed air and a click over the network

Highlights

  • For Panomera® S 4 and 8
  • Cost effective cleaning
  • Client remote control
  • Non-contact
  • Wear-free

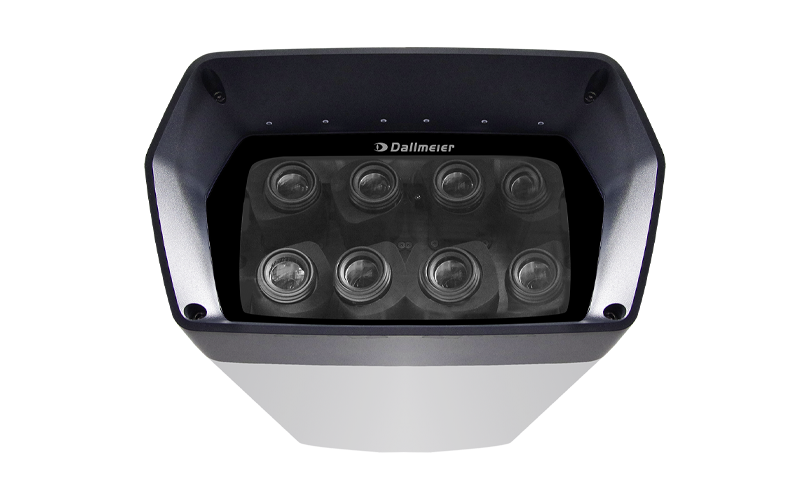

The innovative Panomera® Air Blast System is designed for easy, reliable and cost-effective maintenance of the latest Panomera® S 4 and 8 models.

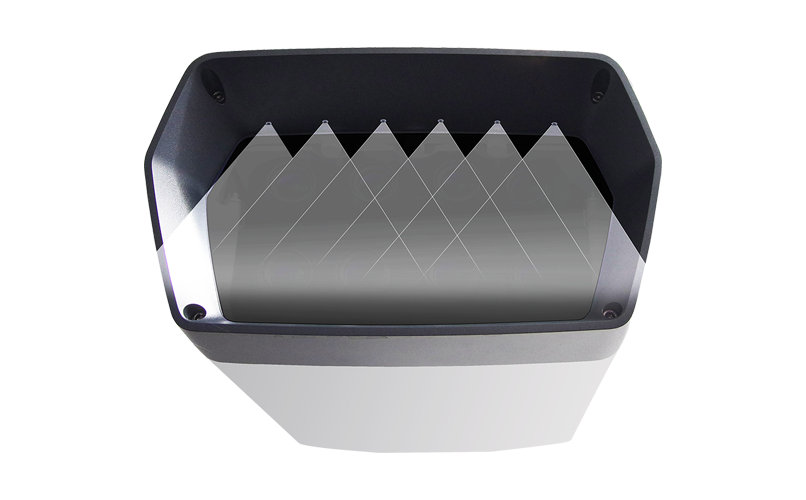

The compressed air nozzles in the front frames are optimally matched to the front glass and allow gentle cleaning with a concentrated blast of compressed air.

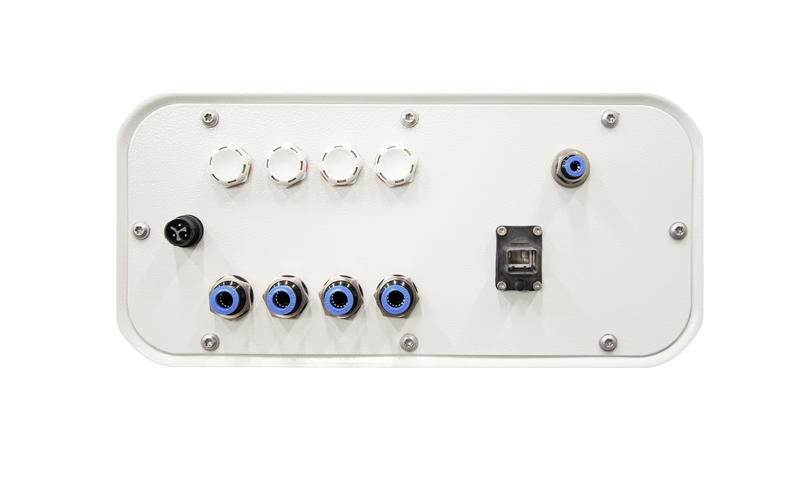

Connection

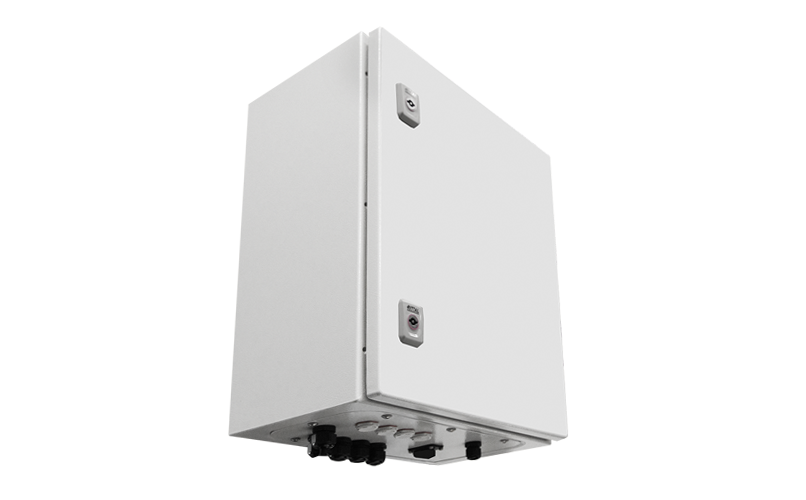

The Panomera® Air Blast Charger 4 allows the connection of up to four Panomera® S 4/8 over one compressed air line each. The compressed air line is offered with a length of 25 m or 50 m and can be quickly and easily shortened to the required length.

Compressed air
The Panomera® Air Blast Charger 4 is equipped with a pressure tank which can be filled with approximately 8 bar compressed air in about one minute. After cleaning a Panomera® with a blast of compressed air, the system is ready for use again in the shortest time, allowing all connected Panomera® systems to be cleaned in just a few minutes.

Control
The Panomera® Air Blast Charger 4 is equipped with an Ethernet interface and can be remote controlled with minimal effort. Apart from the cyclical safety inspection, no further measures are required at the installation site of the Panomera® systems.

Cleaning
The innovative Panomera® Air Blast System generates a targeted compressed air blast which reliably removes water droplets, dust, flying sand or spider webs from the front glass. Unlike

Scope of delivery

  • Panomera® Air Blast Charger 4
  • Bracket for mounting on walls

Options

  • Bracket for mounting on poles
  • Compressed air line 25 m or 50 m
  • Panomera® Air Blast Kit

Accessories


Panomera® ABC Pole AdapterPanomera® ABC Pole Adapter
Adapter for mounting the Panomera® Air Blast Charger 4 on round (Ø 40 - 170 mm) or rectangular (☐ 50 - 150 mm) poles, 2× profile rails (sheet steel), 2× tensioning straps (stainless steel), galvanized
Panomera® ABC Compressed Air Line 25 mPanomera® ABC Compressed Air Line 25 m
Compressed air line for connecting a Panomera® S 4/8 with Air Blast Kit to a Panomera® Air Blast Charger 4, polyethylene, UV-resistant and flexible, black, length 25 m
Panomera® ABC Compressed Air Line 50 mPanomera® ABC Compressed Air Line 50 m
Compressed air line for connecting a Panomera® S 4/8 with Air Blast Kit to a Panomera® Air Blast Charger 4, polyethylene, UV-resistant and flexible, black, length 50 m

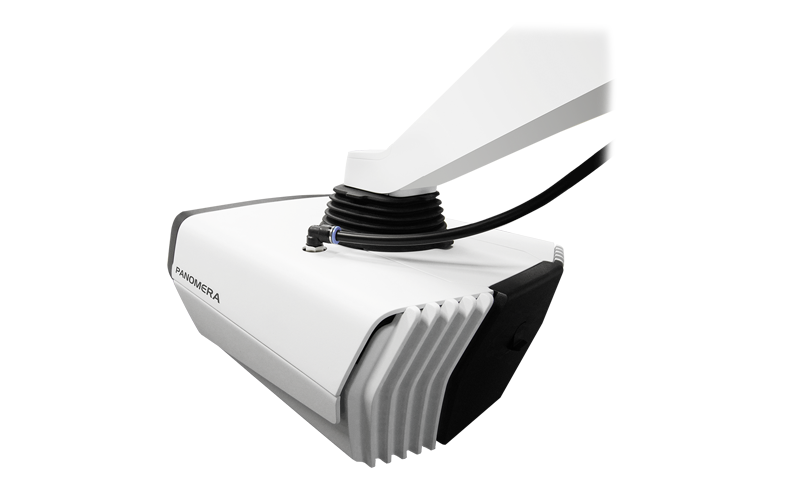

Panomera® Air Blast KitPanomera® Air Blast Kit
Upgrade kit for a Panomera® S 4/8 with Mountera® Quick-Lock System for cleaning the front glass with compressed air, compressed air line with length 3 m for connection to a Panomera® Air Blast Charger 4 included
