Ultra high definition PTZ network camera with IR illumination

DDZ5000DN-IR Series

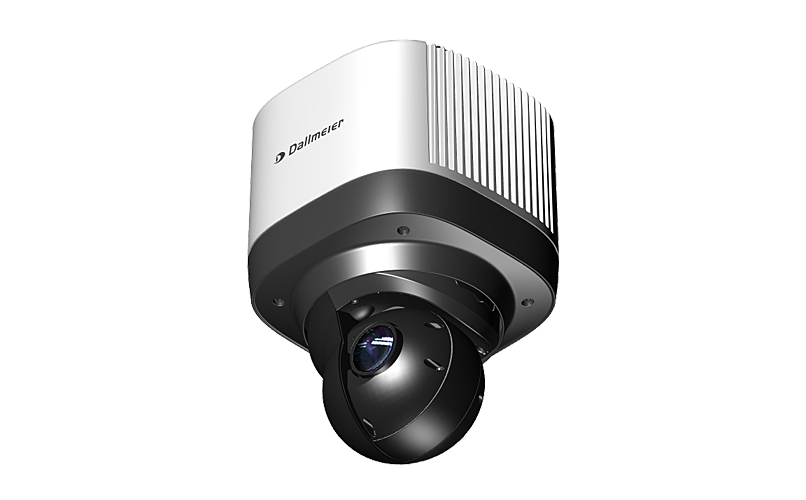

DDZ5000DN-IR Series (Isometric Bottom View)

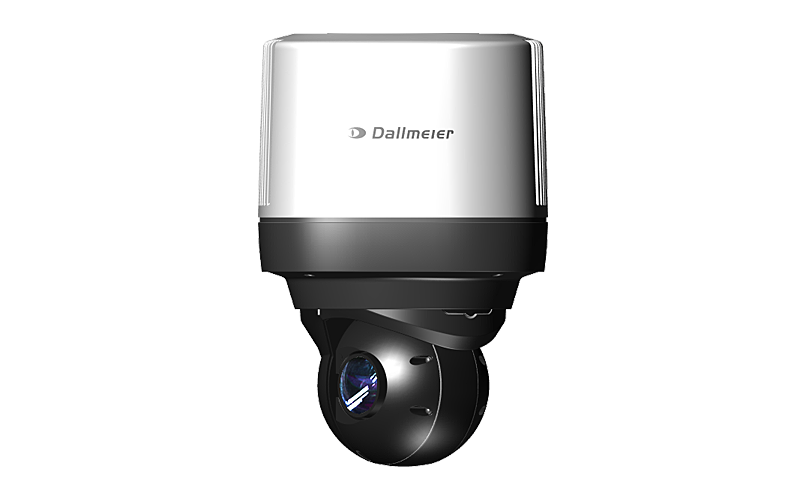

DDZ5000DN-IR Series (Front View 1)
DDZ5000DN-IR Series (Front View 2)

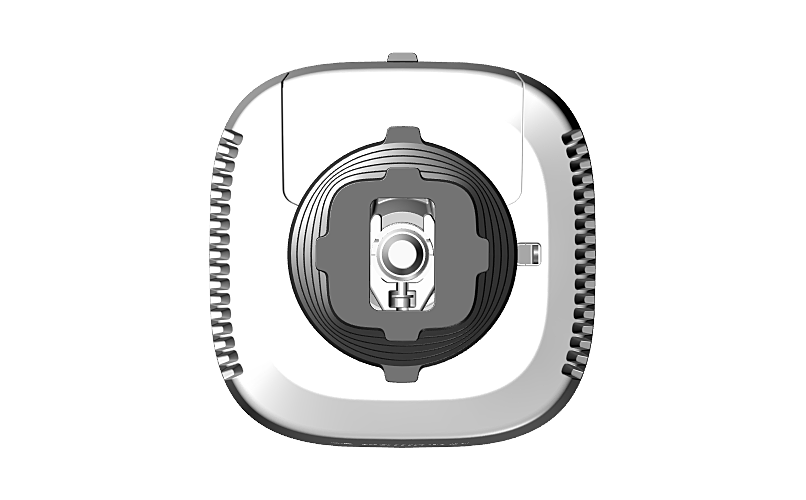

DDZ5000DN-IR Series (Rear View)

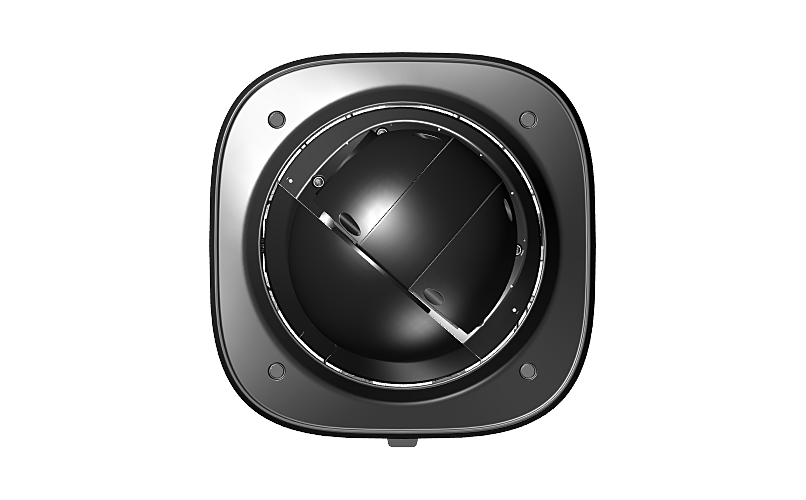

DDZ5000DN-IR Series (Bottom View)
DDZ5000DN-IR Series (Top View)


  • 5/8 MP Resolution
  • 40× zoom with autofocus
  • IR illumination up to 100 m
  • Mountera® mounting system
  • Weatherproof IP69 housing with heater

The DDZ5000DN-IR series offers high-speed PTZ network cameras with 40× zoom and integrated IR Illumination.

Both models are equipped with a high-performance PTZ mechanism and provide high-resolution video streams with up to 60/30 fps at a resolution of up to 5/8 MP with excellent contrast, brilliant clarity as well as highest detail resolution.

Domera® OS
The cameras are equipped with the hardened Linux operating system Domera® OS. In addition to a kernel with long-term support, it offers extensive security functions such as the deactivation of unused ports or the enforcement of strict passwords. In addition, Domera® OS supports secure network authentication (IEEE 802.1X) and encrypted data transmission (TLS 1.2/AES-256). All software components are subject to permanent monitoring, maintenance and updating, while the effectiveness of all measures is ensured by regular external penetration tests.

PTZ home position EdgeAnalytics
In the PTZ home position, the camera optionally supports the use of the EdgeAnalytics Essential Apps (AI Motion Detection, AI Tamper Detection, AI Loitering Detection, AI Intrusion Detection, AI Line Crossing) based on Deep AI object classification using intensively trained neural networks. In the home position, the Essential Apps offer the complete range of functions already integrated in the 6000 camera series and deliver precise results for triggering actions with the integrated Domera® event management, even under difficult conditions (backgrounds with green areas, water surfaces, etc.).

Event-controlled recording
Dallmeier recording systems usually record the video stream of PTZ cameras permanently. If the EdgeAnalytics Essential Apps are used in the PTZ home position, it is possible to switch to event-controlled recording. In this case, when leaving the home position, the entire camera pan is recorded as well as every object detected in the new position.

Integrated IR illumination
The day/night operation is supported by an integrated wide-ranging IR illumination that is automatically adjusted to the selected zoom ratio. In the IR mode at night, the cameras provide excellent results due to the high infrared sensitivity and thus meets even the most demanding requirements in a 24-hour operation.

The cameras are equipped with a RAM memory that is used by the EdgeStorage function to store the video stream in case of a network failure (e.g. Spanning Tree, Bursts). When the network is restored, the SmartBackfill function ensures fast transmission to the Dallmeier recording system. This stores the video stream with high speed and then continues to record the live stream seamlessly.

Further Features

  • High-speed pan/tilt/zoom mechanism
  • 40× zoom with autofocus
  • Digital image stabilization (EIS)
  • Range of IR lighting up to 100 m
  • Minimum illumination 0 lux (with IR LED On)
  • Memory expansion with microSDXC card
  • Wide Dynamic Range (WDR/HDR)
  • Video compression H.264, H.265, MJPEG
  • 128 programmable preset positions
  • GDPR-compliant functions for data protection and security
  • Compatible with ONVIF Profile S and Profile T
  • Network protocol MQTT supported
  • Weatherproof IP69 housing with heater
  • Compatible with the Mountera® mounting system


Power Supply Box for Mountera HousingMountera® Box with PSU
Mountera® Box with power supply unit, 48 V DC, 5.4 A, 260 W, IP69, white
Wall Bracket for Mountera HousingMountera® Wall Bracket
Mountera® bracket for the installation of camera systems on walls or on a Mountera® Box, Quick-Lock System included, robust aluminium construction, internal cable routing, vandal-resistant, powder-coated, white
Ceiling Bracket for Mountera HousingMountera® Ceiling Bracket
Mountera® bracket for installation of camera systems on ceilings, Quick-Lock System included, robust aluminium construction, internal cable routing, vandal-resistant, powder-coated, height 150 mm, white
