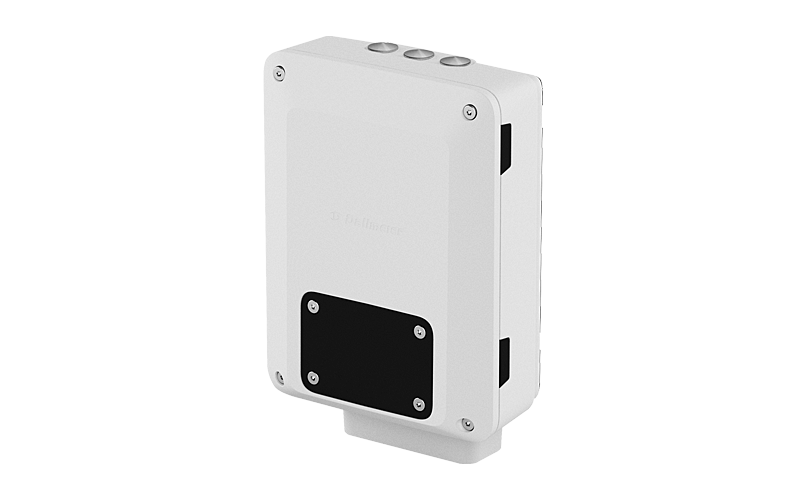

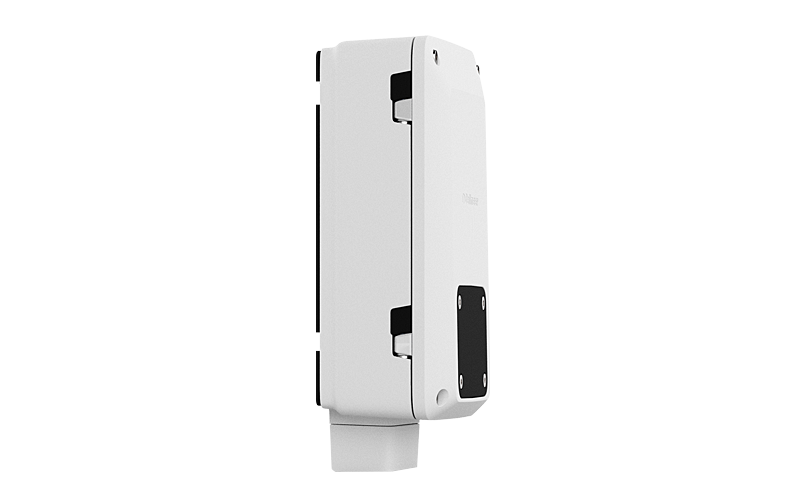

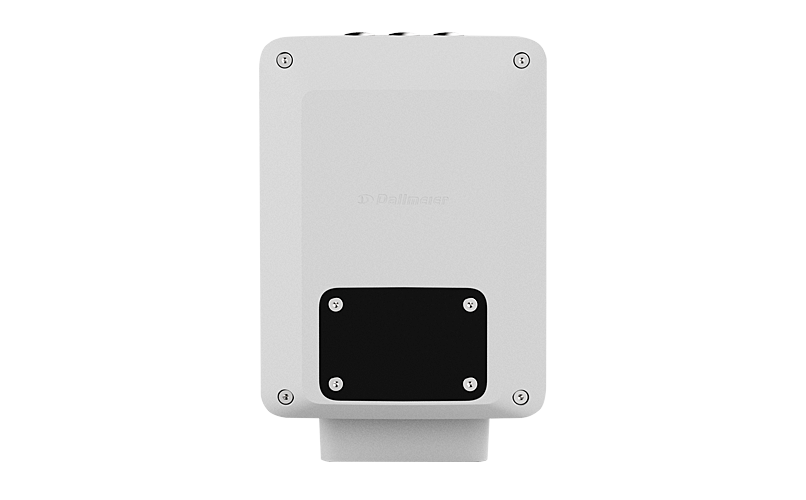

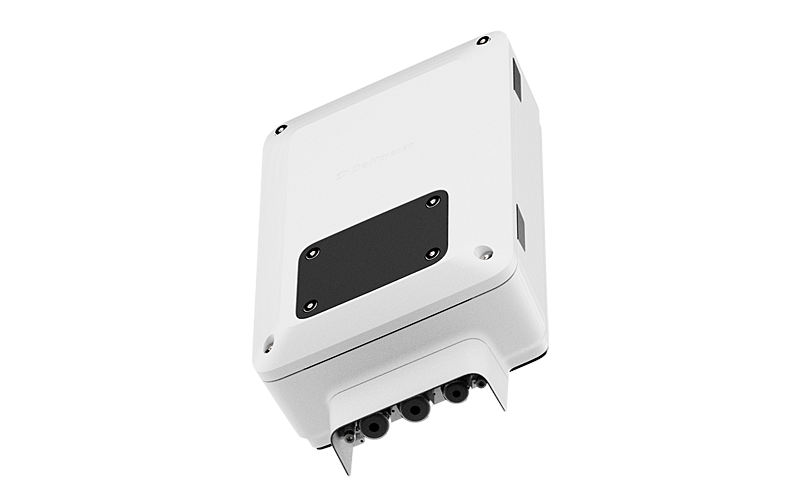

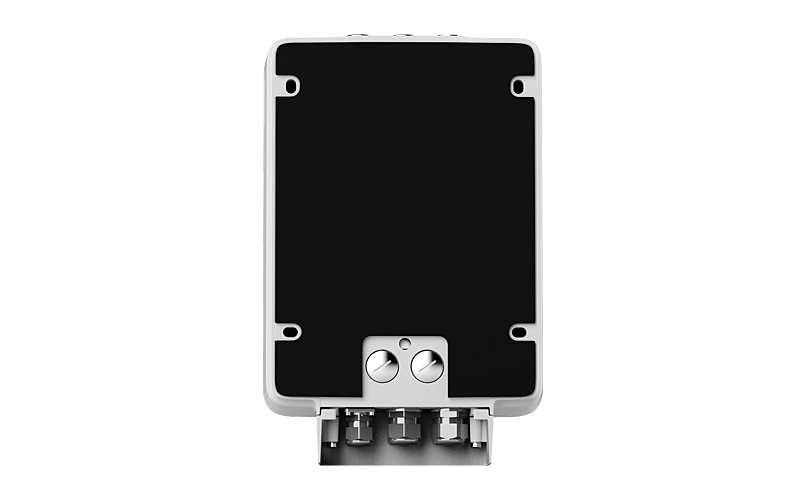

Mountera® Box with SRS Edge

Decentralized recording in close proximity to Panomera® systems

Highlights

  • Up to 16 Video Streams
  • Stand-alone
  • Compact, Fanless, Energy Efficient
  • SSD memory

The Mountera® Box with SRS Edge combines the robust box of the innovative Mountera® Quick-Lock System with a SMAVIA Recording Server Appliance.

The fanless and energy efficient server hardware offers excellent passive cooling and allows recording of up to 16 high-resolution video streams at a frame rate of 30 fps.

Panomera®
The Mountera® Box with SRS Edge has been especially developed for the decentralized and bandwidth-saving use in close proximity to Panomera® multifocal sensor systems. All Panomera® video streams are stored locally and directly. The license for the recording of a Panomera® system is already included in the scope of delivery. The access for live viewing and playback over the network is uniformly established via SMAVIA Recording Server.

Storage System
The Mountera® Box with SRS Edge is equipped ex works with a highly efficient and solidly installed SSD memory. This allows high storage speeds even in the elevated temperature range and is used exclusively for recording. The hardened Linux operating system and the SMAVIA Recording Server application are installed on a separate flash module.

SeMSy® Compact
SeMSy® Compact allows independent and convenient evaluation of the recordings over the network. The software can be installed on workstations with Windows operating system and adjusted individually. Two licenses for access with clients are already included in the scope of delivery of the appliance.

PRemote-HD
The optional PRemote-HD function transcodes high-definition video streams (live and playback) for transmission in low-bandwidth networks. It allows the resource-conserving access with Dallmeier Client Software which is independent of the recording settings. The license for PRemote-HD also enables mobile access to transcoded video streams with SeMSy® Mobile Client.

VCA Database
The appliance is equipped with a database for the analysis results of Dallmeier cameras VCA technology. The events, objects and classes sent by the camera are stored with the relevant metadata almost in real-time. Dallmeier Client Software is available for targeted search and evaluation with the SmartFinder function.

SmartBackfill
Dallmeier cameras are equipped with RAM memory that is used by the EdgeStorage function for storing the video stream in case of a network failure (e. g. Spanning Tree, Bursts). When the network is restored, the SmartBackfill function ensures fast transmission to the SMAVIA recording system. This stores the video stream at high speed and then seamlessly continues the recording of the live stream.

Features Hardware

  • Compact, fanless and robust server hardware
  • Passive cooling over aluminium housing
  • Flash module for operating system and application
  • Built-in 2/4 TB M.2 SSD fixed storage ex factory
  • Highly efficient system with low power consumption
  • Cover secured with alarm contact
  • Robust 260 W power supply included
  • Adapter for Mountera® Ceiling Bracket optional
  • Adapter for mounting on a pole optional

Features SMAVIA Recording Server

  • Recording of up to 16 high-resolution video streams
  • License for the recording of a Dallmeier network camera or a Panomera® system included
  • Licenses for access with 2 clients included
  • Licenses for the update of the software for 24 months included
  • Video compression H.265, H.264, MJPEG supported
  • Recording of third-party cameras optional
  • Mobile access with SeMSy® Mobile Client supported
  • Evaluation with SeMSy® Compact/Workstation over WAN/LAN
  • Basic license for integrated data protection and data security (GDPR-compliant) included

Accessories


Remote Ethernet I/O InterfaceM.2 NVMe Module 2 TB
Dallmeier certified 2 TB M.2 NVMe SSD memory module, including installation, functional, long-term and final test, acceptance and approval

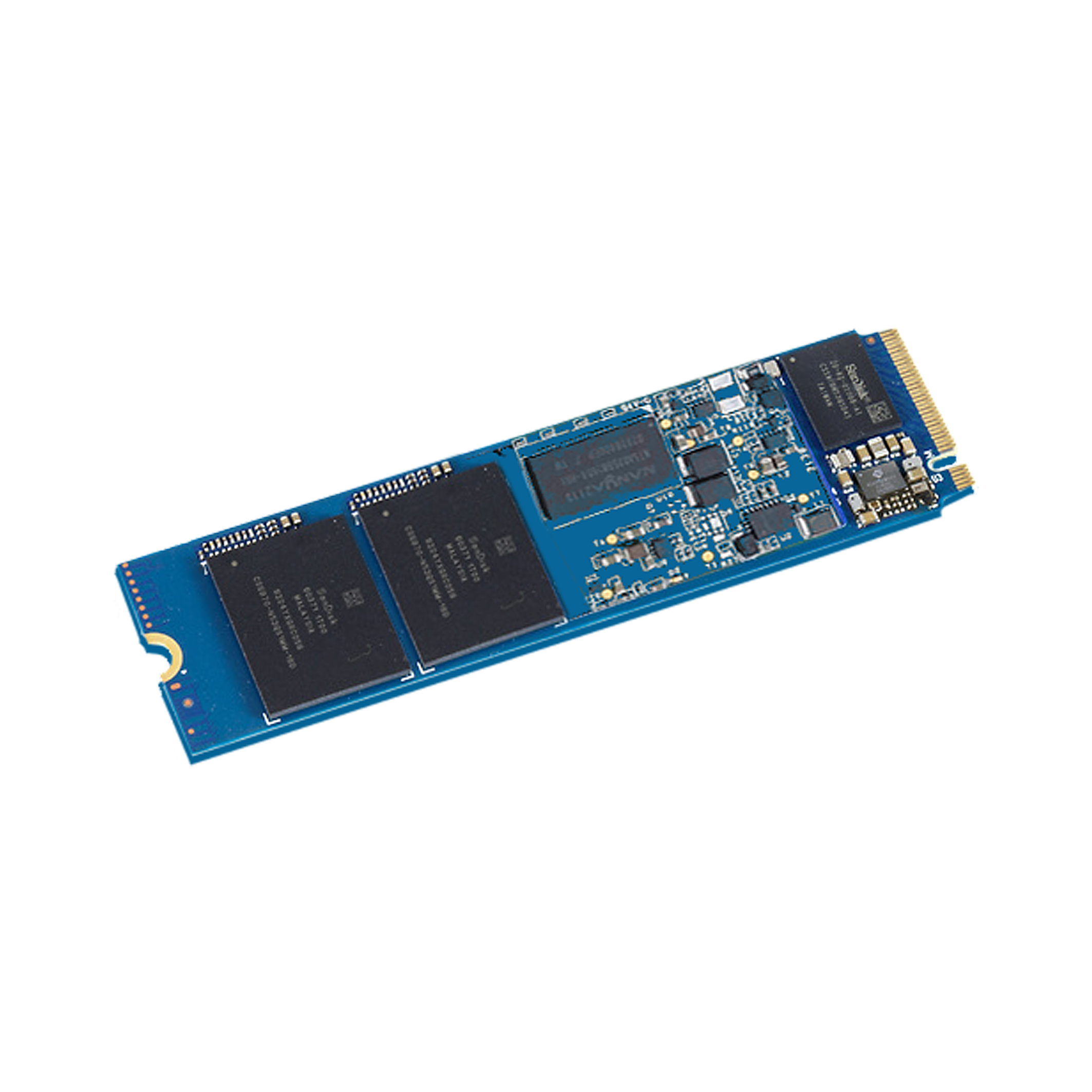

Remote Ethernet I/O InterfaceM.2 NVMe Module 4 TB
Dallmeier certified 4 TB M.2 NVMe SSD memory module, including installation, functional, long-term and final test, acceptance and approval

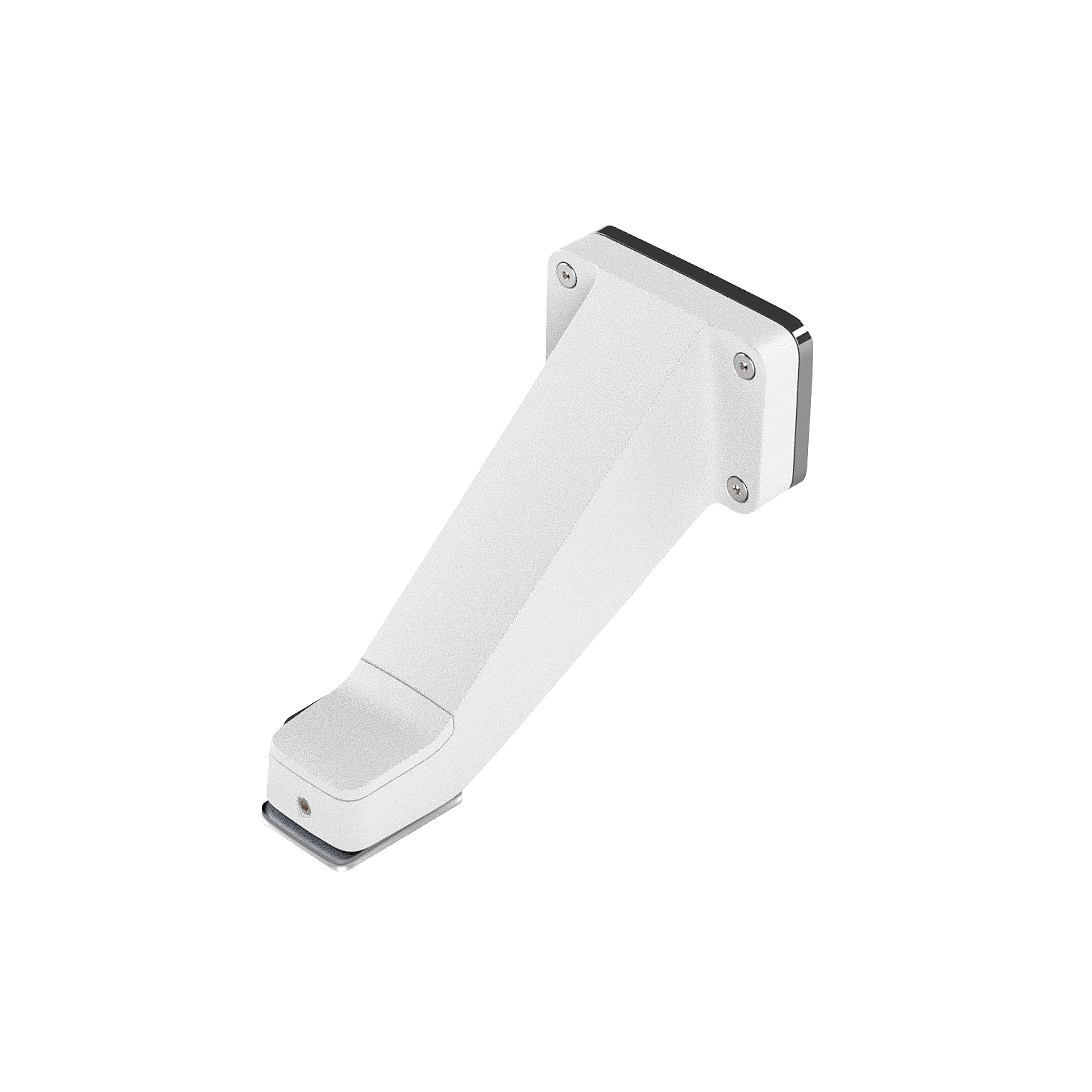

Mountera® Wall BracketMountera® Wall Bracket
Mountera® bracket for the installation of camera systems on walls or on a Mountera® Box, Quick-Lock System included, robust aluminium construction, internal cable routing, vandal-resistant, powder-coated, white

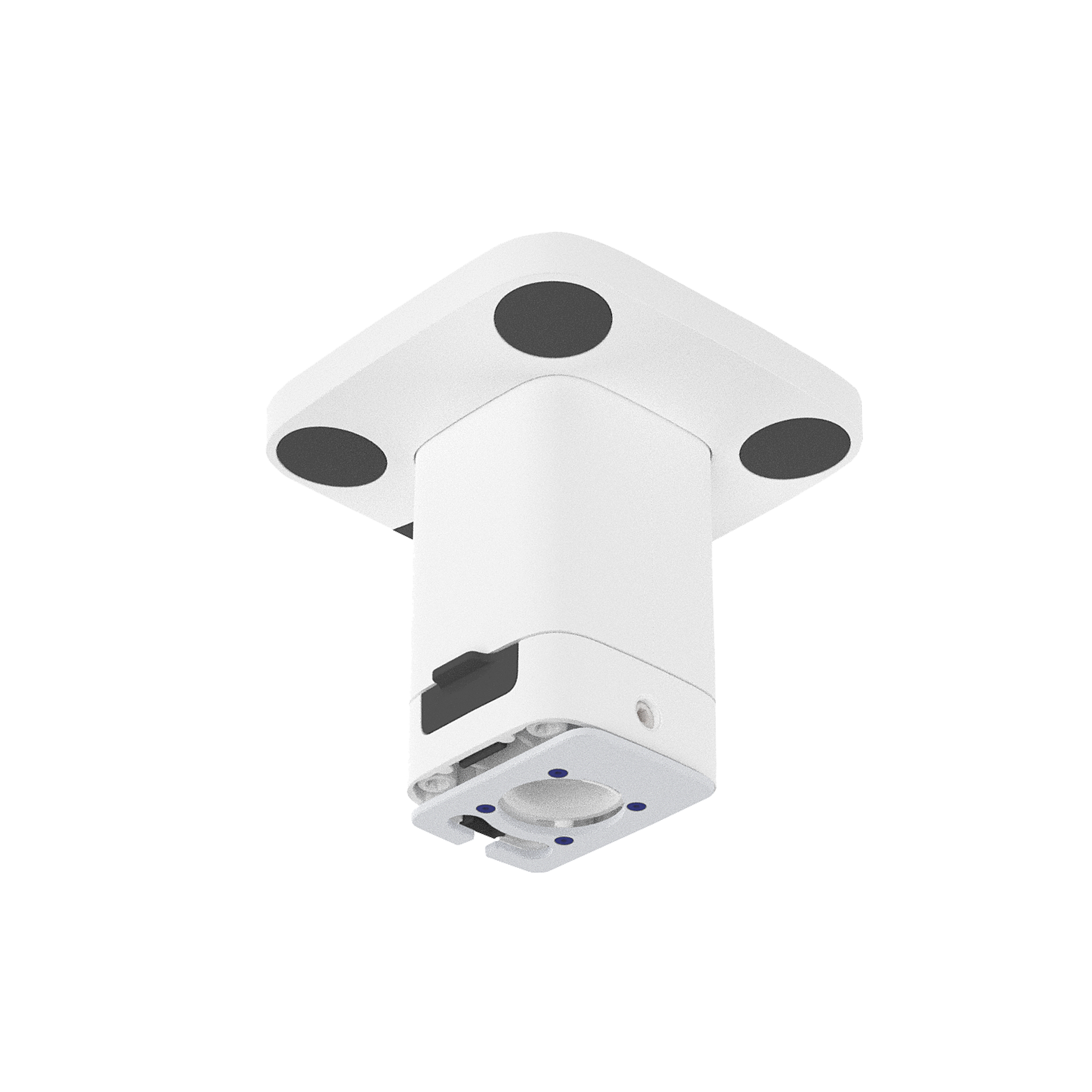

Mountera® Ceiling BracketMountera® Ceiling Bracket
Mountera® bracket for installation of camera systems on ceilings, Quick-Lock System included, robust aluminium construction, internal cable routing, vandal-resistant, powder-coated, height 150 mm, white

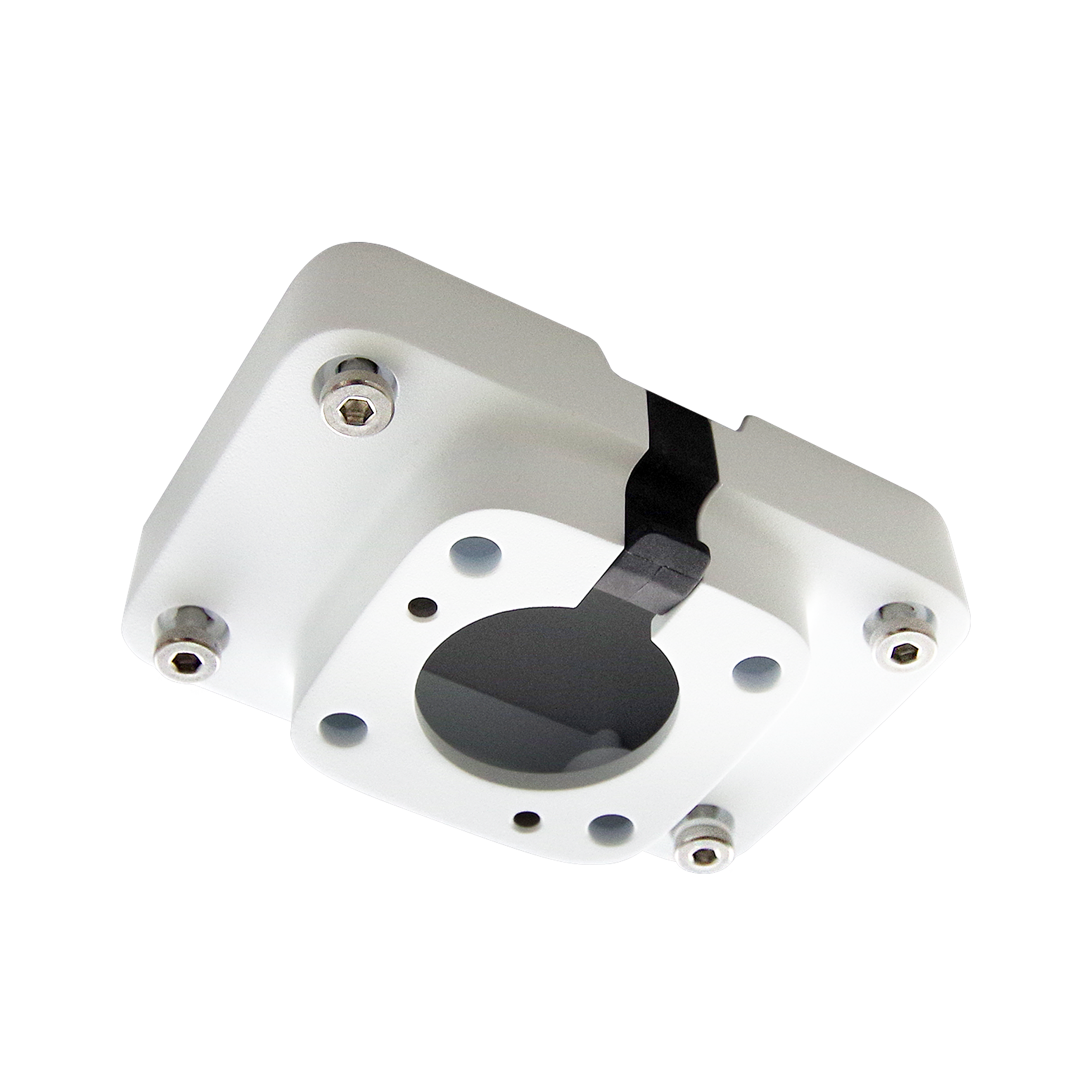

Mountera® Ceiling Bracket Box AdapterMountera® Ceiling Bracket Box Adapter
Adapter for the modification of a Mountera® Ceiling Bracket for mounting on a Mountera® Box, 4× self-locking screws (microencapsulated), powder-coated, white

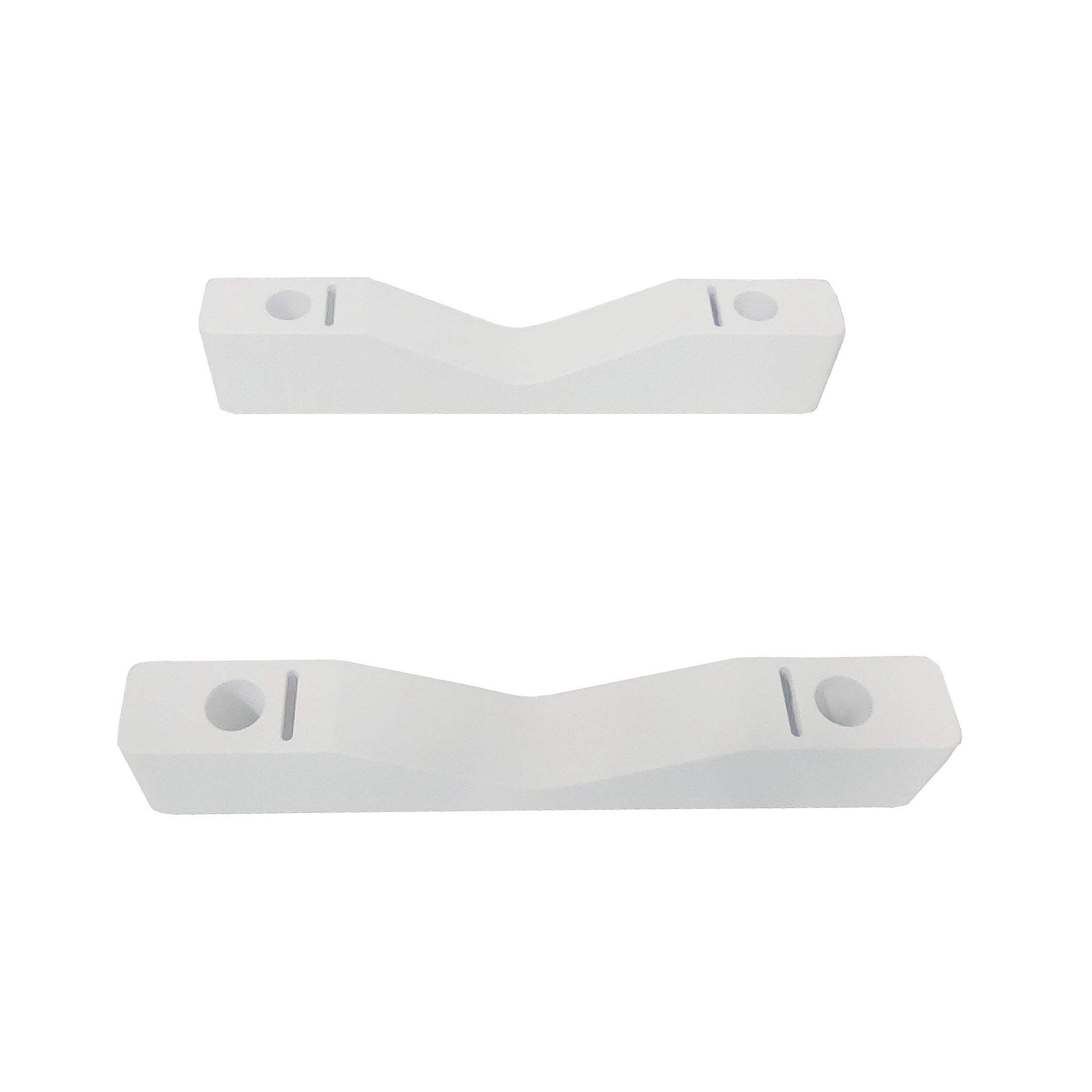

Mountera® Box Pole AdapterMountera® Box Pole Adapter
Adapter for installing a Mountera® Box on poles with a diameter of 100 – 300 mm, 4× self-locking screws (microencapsulated), without band clamps, powder-coated, white

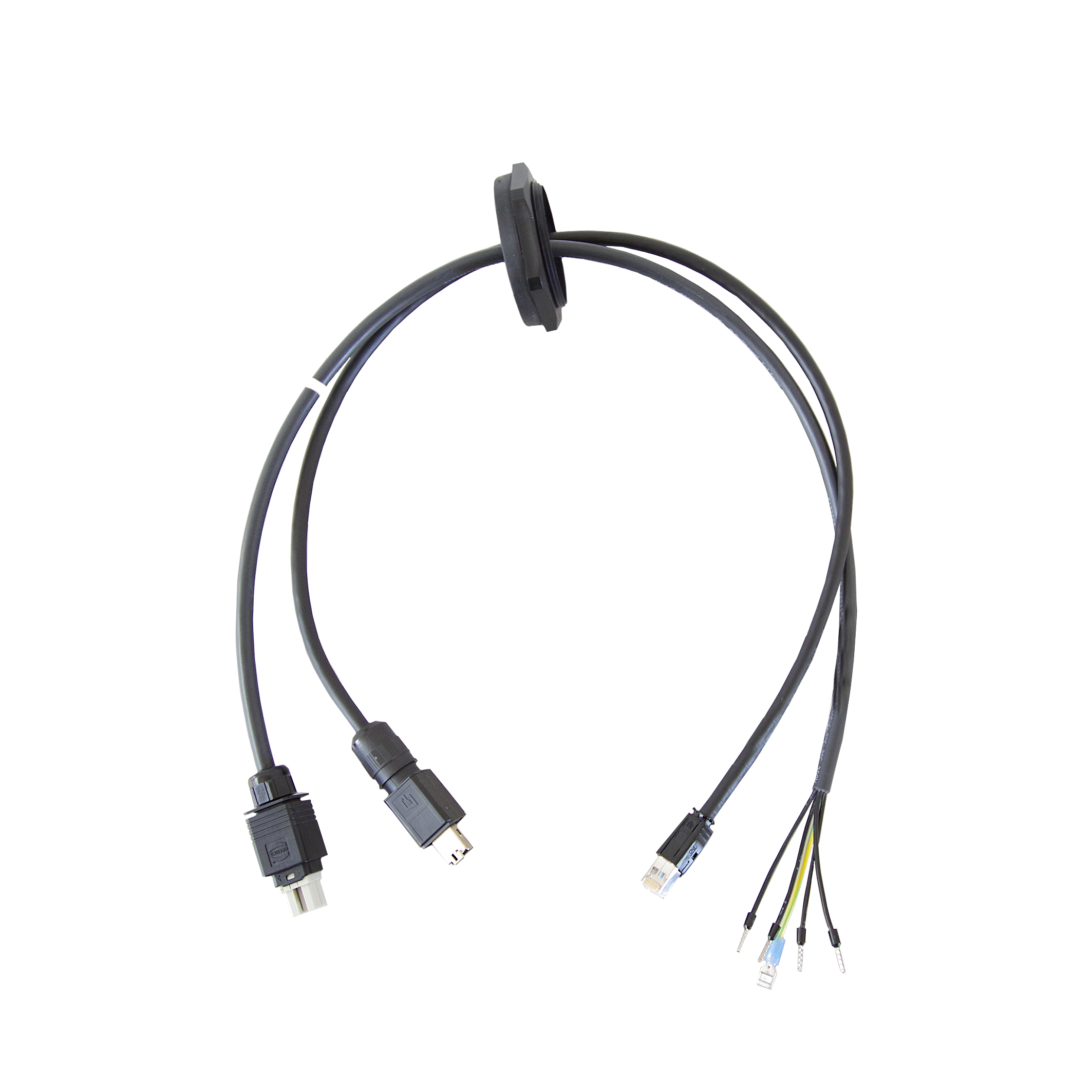

Mountera® Cable Set CMountera® Cable Set C
Preassembled cable set for the connection of a camera system to a Mountera® Box, 1× cable seal, 1× cable power supply/grounding, 1× cable network (copper RJ45), each with matching plug, UV-resistant and flexible, length 80 cm
