Decentralized and bandwidth-saving recording in close proximity to the cameras

Highlights

  • Up to 16 Video Streams
  • Compact, Fanless, Energy Efficient
  • 2 TB or 4 TB M.2 NVMe SSD
  • MK2 Revision
  • SeMSy® Recording Server

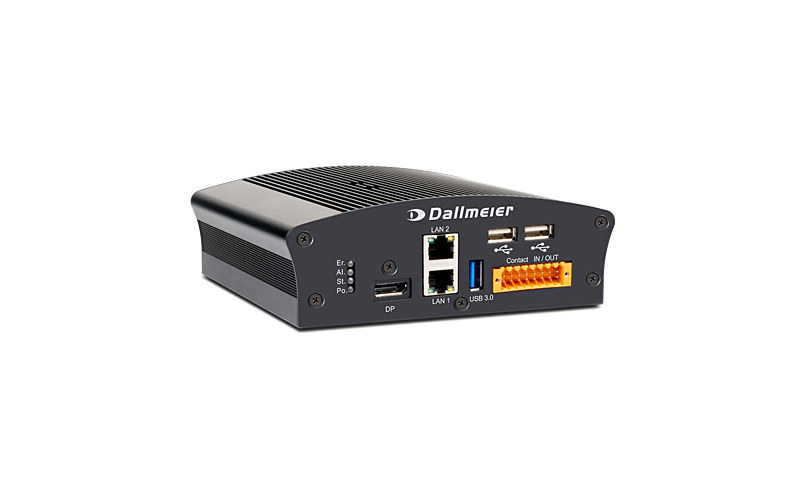

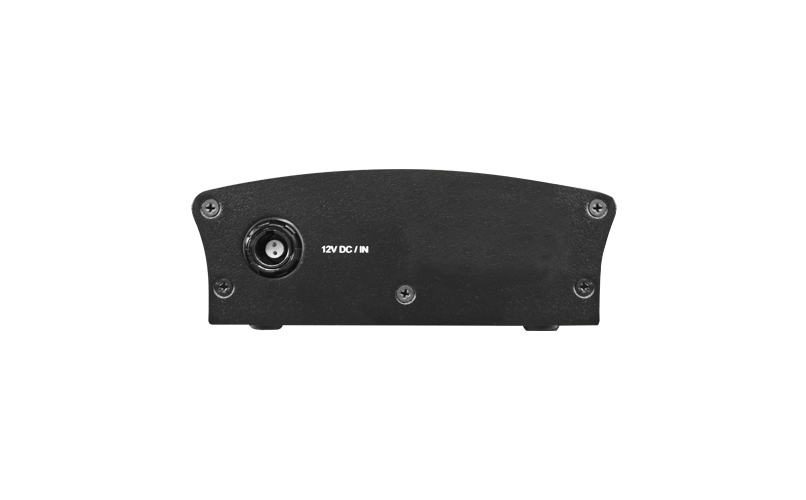

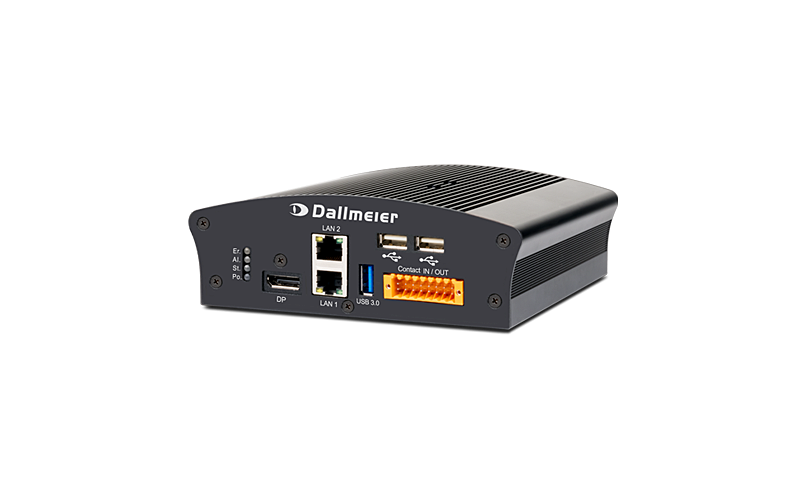

The SRS Edge (MK2) is designed as an appliance for decentralized and bandwidth-saving use in close proximity to the cameras.

It combines the recording software SeMSy® Recording Server with an ultra-compact, fanless, energy efficient and robust server hardware.

Perfectly tuned components ensure excellent passive cooling and allow for the recording of up to 16 high-definition video streams at a frame rate of 30 fps.

Storage System
The SRS Edge (MK2) is equipped ex works with a highly efficient and solidly installed SSD memory. This allows high storage speeds even in the elevated temperature range and is used exclusively for recording. The hardened Linux operating system and the SeMSy® Recording Server application are installed on a separate flash module.

SeMSy® Compact
SeMSy® Compact allows independent and convenient evaluation of the recordings over the network. The software can be installed on workstations with Windows operating system and adjusted individually. Two licenses for access with clients are already included in the scope of delivery of the appliance.

PRemote-HD
The optional PRemote-HD function transcodes high-definition video streams (live and playback) for transmission in low-bandwidth networks. It allows the resource-conserving access with SeMSy® Compact or a SeMSy® Workstation which is independent of the recording settings. The license also enables mobile access to transcoded video streams with SeMSy® Mobile Client.

EdgeAnalytics Database
The appliance is equipped with a database for the analysis results of Dallmeier cameras and Panomera® systems with Edge-Analytics technology. The received events, objects and classes are stored with the relevant metadata almost in real-time. For targeted search and evaluation, SeMSy® Compact is available with the SmartFinder function.

SmartBackfill
Dallmeier cameras are equipped with RAM memory that is used by the EdgeStorage function to store the video stream in case of a network failure (e. g. Spanning Tree, Bursts). When the network is restored, the SmartBackfill feature ensures fast transfer to the Dallmeier recording system. This stores the video stream at high speed and then seamlessly continues recording the live stream.

Recording of 3rd party cameras
The pre-installed SeMSy® Recording Server software is designed as an open platform. Together with the according licenses, 3rd party cameras can be recorded with motion detection and configured over the ONVIF protocol.

Recording of Panomera® cameras
For the recording of a Panomera® multifocal sensor system, only one licensed recording channel is required for the first sensor. For all other Panomera® sensors, only free channels must be available, but these do not need to be licensed for recording.

Features Hardware

  • Compact and fanless server hardware
  • Extended temperature range -30°C to +65°C

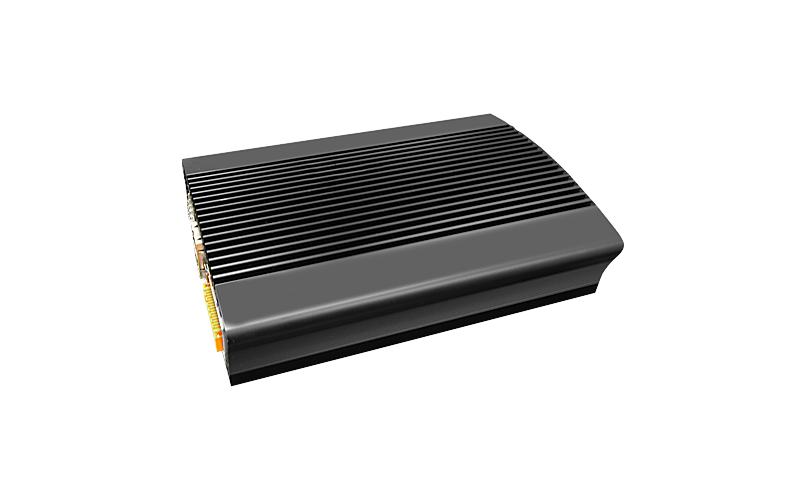

  • Passive cooling via aluminum housing
  • Flash module for operating system and application
  • Highly efficient system with low power consumption
  • Mounting rails and power supply included in delivery

Features SeMSy® Recording Server

  • Recording of up to 16 high-definition video streams
  • License for the recording of one video stream included
  • Licenses for access with two SeMSy® Compact clients included
  • Licenses for the update of the software for 12 months included
  • Cameras with ONVIF Profile M, S and T supported
  • Direct evaluation with LocalViewing optional
  • Mobile access with SeMSy® Mobile Client supported
  • Evaluation with SeMSy® Compact/Workstation over WAN/LAN
  • Functions for data protection and data security (GDPR-compliant)

Accessories

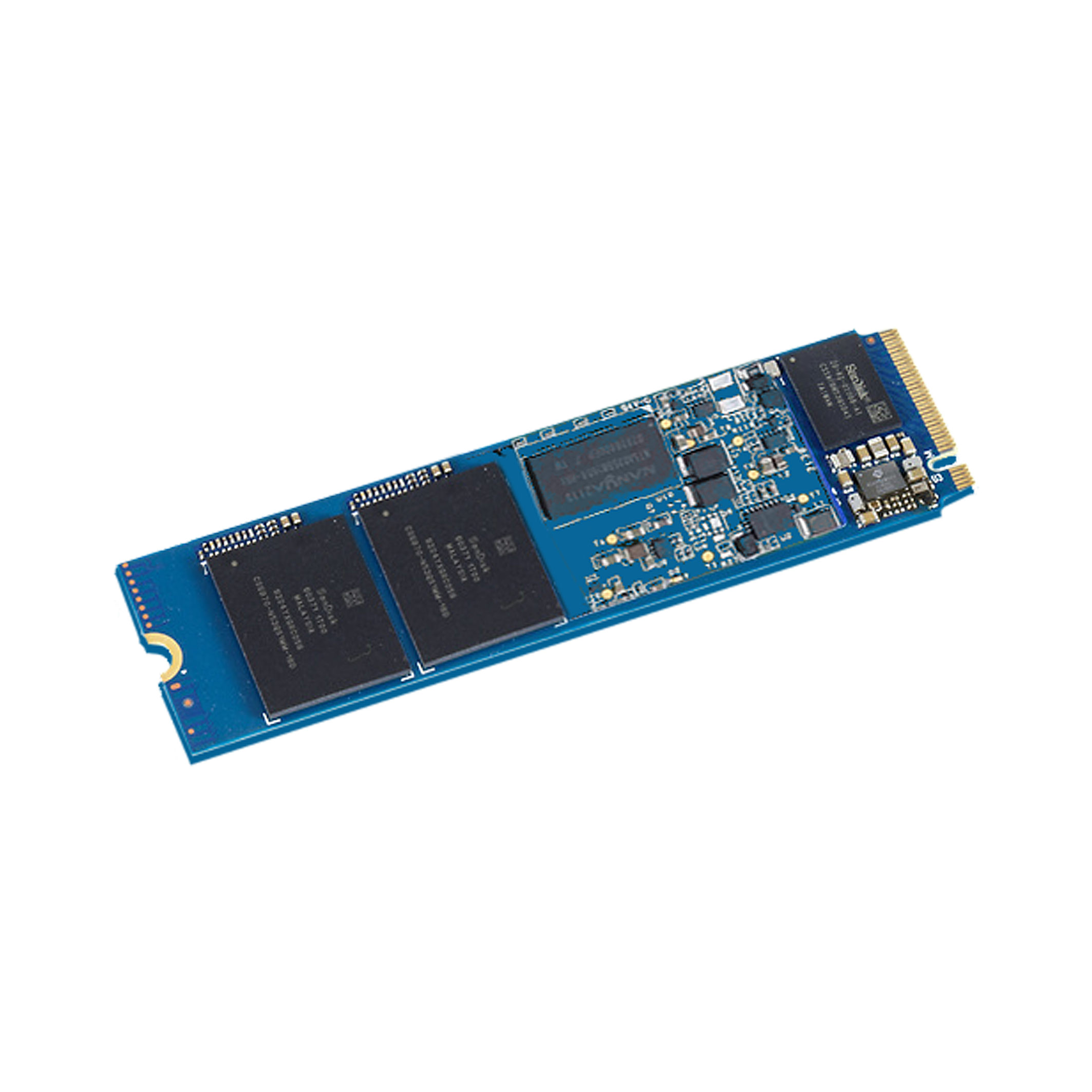

Remote Ethernet I/O InterfaceSSD M.2 NVMe Module 2 TB
Dallmeier certified 2 TB M.2 NVMe SSD memory module, including installation, functional, long-term and final test, acceptance and approval
Remote Ethernet I/O Interface SSD M.2 NVMe Module 4 TB
Dallmeier certified 4 TB M.2 NVMe SSD memory module, including installation, functional, long-term and final test, acceptance and approval

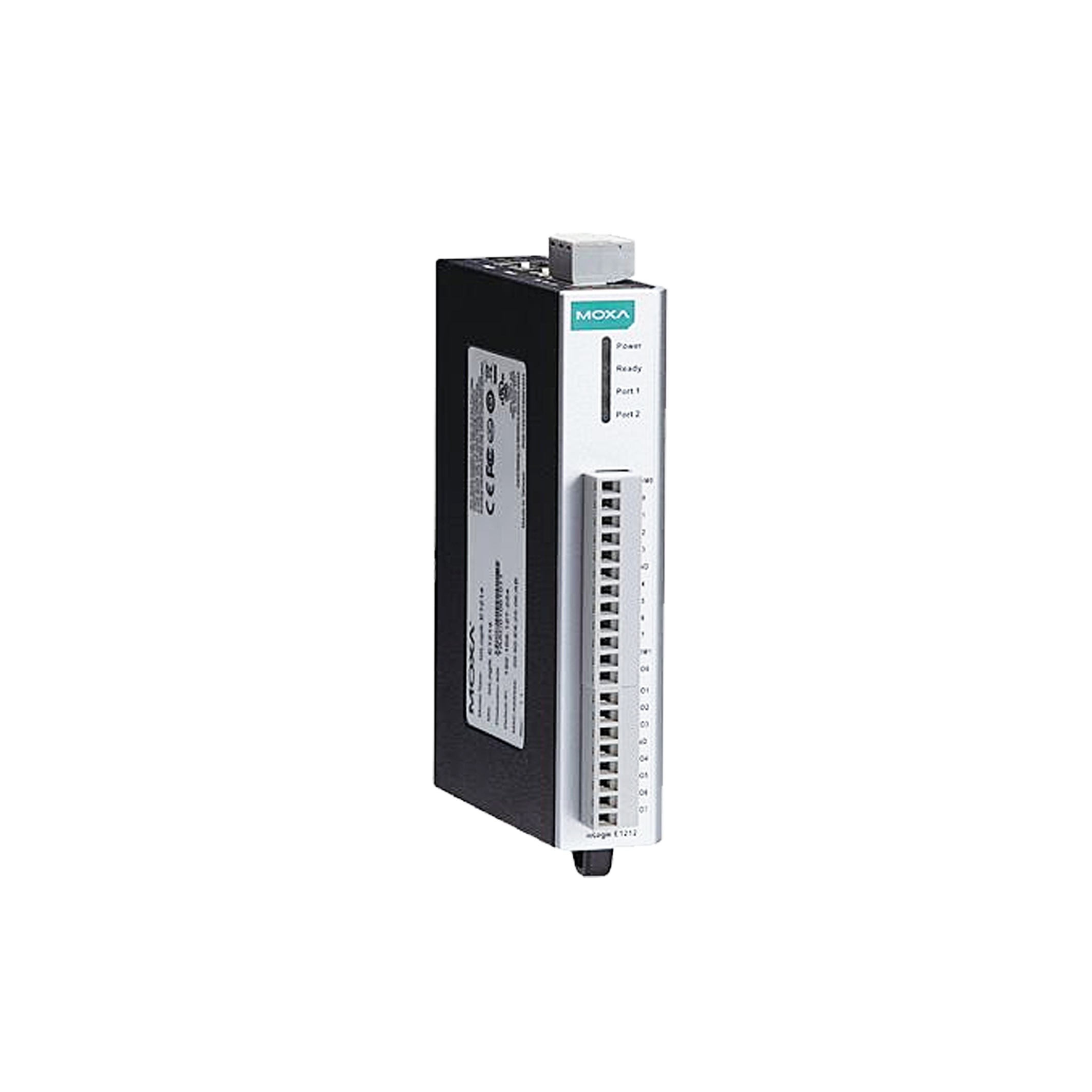

Remote Ethernet I/O InterfaceRemote Ethernet I/O Interface
Ethernet I/O Interface, 2× Ethernet, 6× contacts, 6× relays (MOXA ioLogik E1214)
