180° video surveillance of up to 10,000 m²
Highlights
- Grand View Package included
- AI EdgeAnalytics optional
- 180° field of view with maximum resolution
- Video surveillance of up to 10,000 m²
- No blind spot

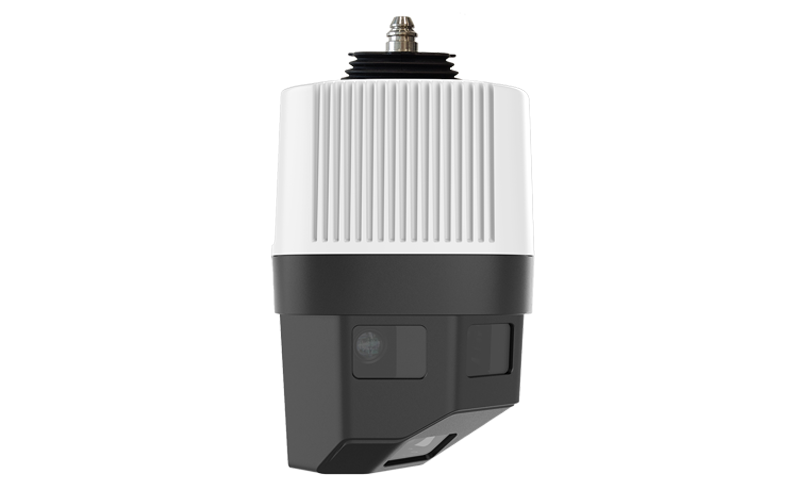

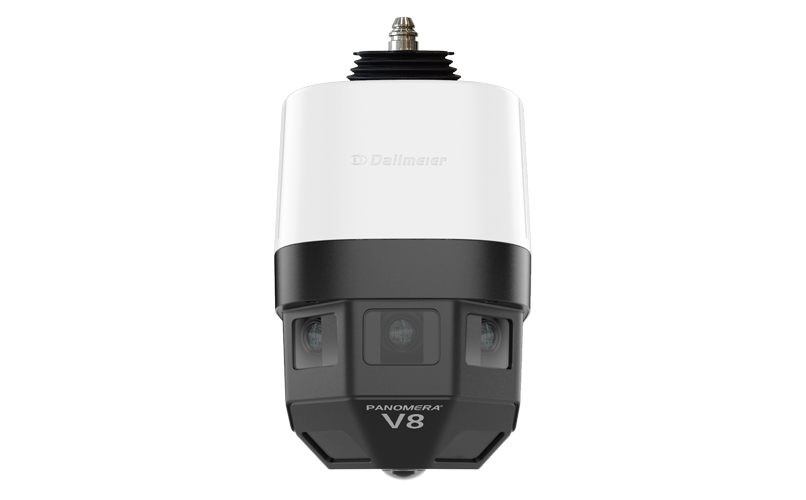

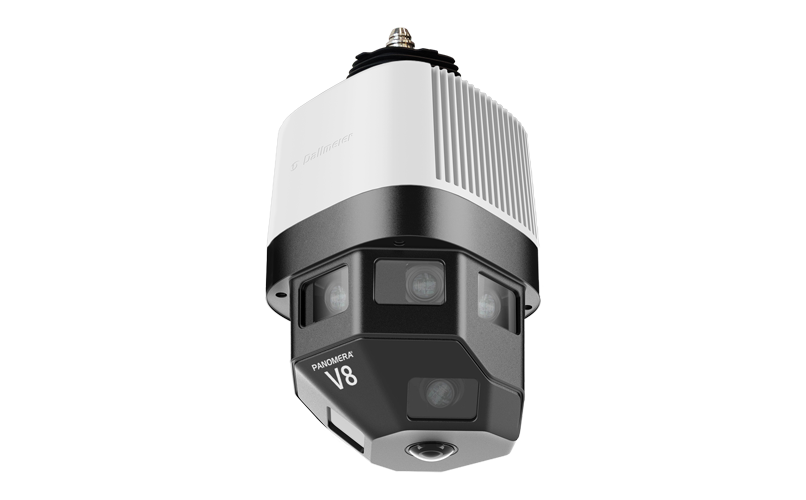

Panomera® V8 combines the range and resolution of the proven Panomera® S series with the viewing angle of the W series.

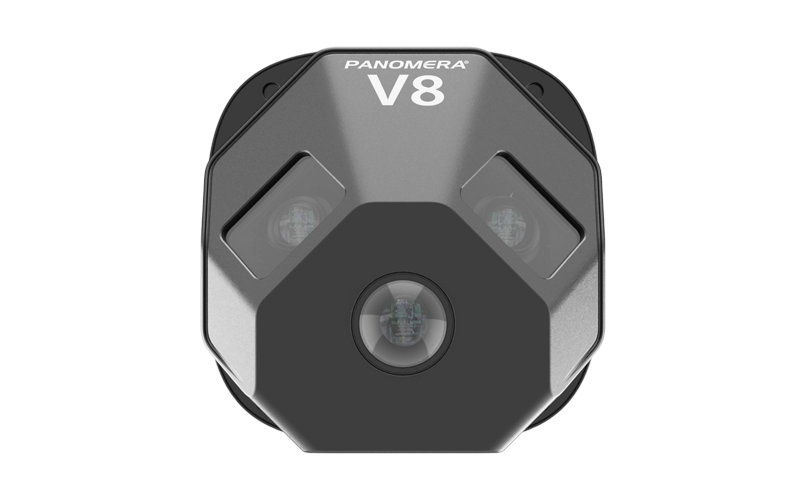

The innovative arrangement of the image sensors enables a 180° field of view with maximum resolution. Since there is no blind spot to consider during installation, comprehensive video surveillance of areas up to 10,000 square meters is possible from a single location.
This means that a single Panomera® V8 can replace several cameras in conventional systems and significantly reduce infrastructure requirements.
Overview
Panomera® Grand View Package (included)
The Panomera® Grand View imaging process described in the patent combines the video streams from multiple image sensors in a unique way to create a continuous, high-resolution overall view. The individual streams are geometrically aligned and corrected with precision. Additional algorithmic corrections ensure seamless transitions and harmonized brightness and color reproduction. This gives the user a panoramic overall view of the action, enabling dynamic and multiple zooming into high-resolution detail areas - without losing the overall view.
AI EdgeAnalytics Essentials Package (optional)
Panomera® V8 is equipped with an intensively trained neural network. This analyzes the captured images independently of background movements (green spaces, bodies of water, etc.) and reliably classifies defined objects (people, vehicles, etc.) in real time. The EdgeAnalytics AI apps use this raw data to evaluate the captured events according to the specific criteria of various use cases, such as Line Crossing or Object Counting. The generated event messages and values supplement the raw data already contained in the video stream and can be displayed and evaluated using Dallmeier client software.
Complete capturing
The multifocal sensor system captures and stores all areas of the object space in maximum detail resolution. It does not matter whether the operators in live mode concentrate on a certain area (multiple detail zoom) or whether interesting areas are displayed in detail on the basis of video content analysis (multiple auto tracking). The Panomera® recordings always contain the entire action and allow for the evaluation of each incident.
Domera® OS
The sensors of the Panomera® are equipped with the hardened Linux operating system Domera® OS. In addition to a kernel with long-term support, it offers extensive security functions such as the deactivation of unused ports or the enforcement of strict passwords. In addition, Domera® OS supports secure network authentication (IEEE 802.1X) and encrypted data transmission (TLS 1.3/AES-256). All software components are subject to permanent monitoring, maintenance and updating, while the effectiveness of all measures is ensured by regular external penetration tests.
Further Features
- Dewarped display with Dallmeier client software supported
- EdgeStorage (buffer) and SmartBackfill supported
- GDPR-compliant functions for data protection and data security
- Compatible with ONVIF Profile M, Profile S and Profile T
- Weather-proof (IP69) housing with integrated heater
- Housing coating tested for seawater resistance
- Fully compatible with the Mountera® Quick-Lock System
- Network protocol MQTT supported
AI Licenses
AI Licenses
| Optional EdgeAnalytics AI Essential Apps | |
|---|---|
 | The AI Motion Detection App analyzes the entire image content and reliably detects all movements triggered by persons or vehicles. The motion events are sent to the recording system with the video stream. Afterwards, they are available with metadata such as object type, time and position for targeted evaluation with Dallmeier client software. |
 | The AI Tamper Detection App is classically used for detecting and reporting attempted tampering with the camera. The app detects a general change in the captured scene, such as typically occurs when the camera is manually rotated or tilted, and immediately issues a corresponding message. |
 | The AI Loitering Detection App analyzes the movement of persons detected by the neural networks and evaluates their dwell time in a defined sensitive zone. If the set limit value of the dwell time is exceeded, a corresponding message can be displayed to the operator. At the same time, undesired attendants can be requested to leave the area by outputting a stored audio sequence. |
 | The AI Intrusion Detection App allows the definition of protected zones and issues a message as soon as an object intrudes into them. The object type relevant for the message can be defined as, for example, person or vehicle. For targeted operator attention, a pre-zone can be defined for each protected zone, which can be used to escalate the messages. |
 | The AI Line Crossing App issues a message as soon as a person or vehicle crosses a virtual line drawn in the image. Uninteresting crossings of the virtual lines, for example by animals, can be effectively excluded. An operator is thus less distracted and can concentrate much better on relevant observations. |
 | The AI Vehicle Parking App enables the definition of several zones in which vehicles may not be parked for a longer period of time. The permitted parking time can be set globally for all zones between 5 and 3600 seconds. If this time is exceeded, a corresponding message is sent to the client indicating that the vehicle has been parked incorrectly. |
Accessories
Accessories
 | Mountera® Box with PSU Mountera® Box with power supply unit, 48 V DC, 5.4 A, 260 W, IP69, white |
 | Mountera® Box with SRS Edge Mountera Box® with SeMSy® Recording Server, recording of up to 16× video streams (1× included), total bit rate up to 140 Mbps, fanless, energy efficient, power supply unit 48 V DC, 5.4 A, 260 W included, IP69, white, without SSD memory module |
 | Mountera® Wall Bracket Mountera® bracket for the installation of camera systems on walls or on a Mountera® Box, Quick-Lock System included, robust aluminium construction, internal cable routing, vandal-resistant, powder-coated, white |
 | Mountera® Cable Set C Preassembled cable set for the connection of a camera system to a Mountera® Box, 1× cable seal, 1× cable power supply/grounding, 1× cable network (copper RJ45), each with matching plug, UV-resistant and flexible, length 80 cm |

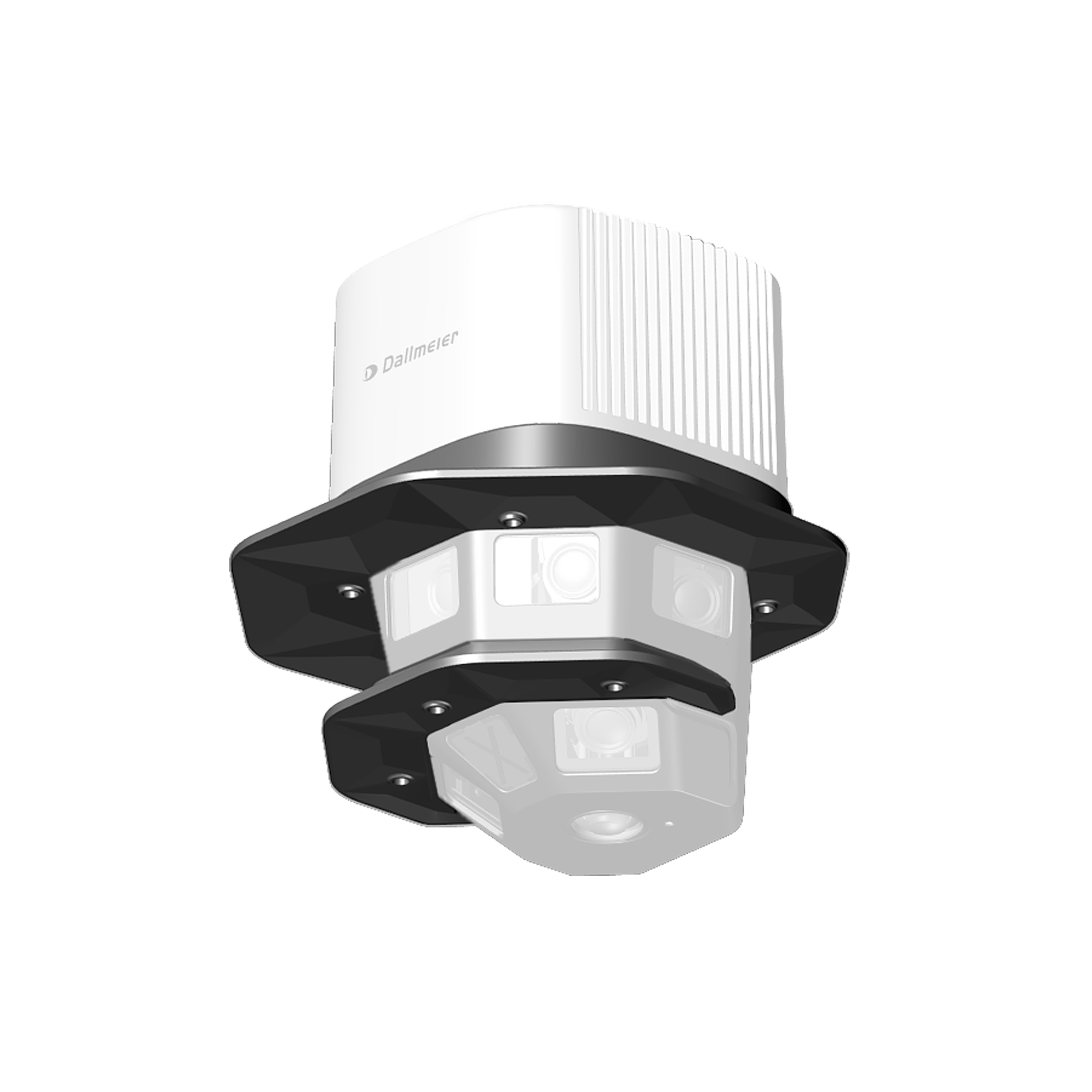

 | Panomera® V8 Sunshield Two-piece sun shield for a Panomera® V8, silicone, weather-resistant, black |
