DDZ5230DN Series

High definition PTZ network camera

A mounted security camera with a spherical black lens, featuring a white housing. The design is modern and suitable for indoor or outdoor surveillance.
A white dome security camera with a lens visible at the bottom, designed for surveillance purposes.
A white dome security camera with a black lens, designed for surveillance purposes.
A circular black panel with a metallic, rectangular central feature, resembling a futuristic button or control, possibly for electronic equipment.
Round metal drain cover with a central circular opening and slotted design for water drainage.
A security camera with a rounded black design mounted in a white base, featuring a prominent lens at the front.
A black dome security camera with a visible lens at the center, mounted on a white circular base.
Illustration of a black dome camera with a circular white base, designed for ceiling installation.
A circular, white ceiling light fixture with a black housing in the center, featuring a lens and a reflective surface visible inside.
A top view of a circular mechanical component with a central sphere and several attachment points around the edge.
A circular dome security camera with a white exterior and a black tinted lens, designed for surveillance purposes.
A mounted security camera with a spherical black lens and a white housing design, positioned on a wall.

Highlights

  • 2 MP Resolution
  • 30× optical zoom with autofocus
  • Outdoor variant with Passive Heating

The cameras of the DDZ5230DN series are high-speed PTZ network cameras with 30× optical zoom.

They are equipped with a high-performance pan/tilt/zoom mechanism and provide real-time high-definition video with up to 60 fps at a resolution of up to 2 MP. The most advanced sensor and encoder technology and the sophisticated image processing provide recordings with excellent contrast, brilliant clarity as well as highest detail resolution and color fidelity.

Domera® OS
The cameras are equipped with the hardened Linux operating system Domera® OS. In addition to a kernel with long-term support, it offers extensive security functions such as the deactivation of unused ports or the enforcement of strict passwords. In addition, Domera® OS supports secure network authentication (IEEE 802.1X) and encrypted data transmission (TLS 1.2/AES-256). All software components are subject to permanent monitoring, maintenance and updating, while the effectiveness of all measures is ensured by regular external penetration tests.

EdgeAnalytics at stored PTZ positions
At stored PTZ positions (presets and home), the camera optionally supports the use of the EdgeAnalytics Essential Apps based on Deep AI object classification. The apps offer the full range of functions already integrated in the 6000 camera series and deliver precise results for triggering actions with the integrated Domera® event management, even under difficult conditions (backgrounds with green areas, water surfaces, etc.).

Event-Driven Recording
Dallmeier recording systems usually record the video stream of PTZ cameras continuously. If the Essential Apps are used at stored PTZ positions, it is possible to switch to event-driven recording. In this case, when leaving the stored position, the entire camera pan is recorded as well as every object detected in the new position.

Wide Dynamic Range
The camera offers a WDR function (also known as High Dynamic Range (HDR)) for optimal recording of scenes with very bright and dark areas. The resulting video stream offers much more detail in both light and dark areas and is visually very close to the human eye's perception.

EdgeRecording
The camera allows parallel recording of two video streams (including audio and analysis data) with different settings on an integrated SD card (optional). Local recording is triggered by the EdgeAnalytics event with the option to set a pre- and post-recording time. Additionally, the first video stream can be transferred to a recording system for permanent recording as usual.

Variants

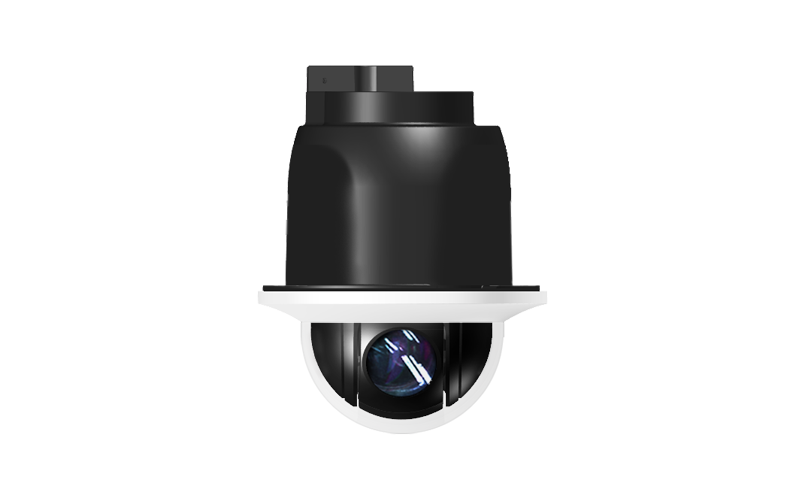

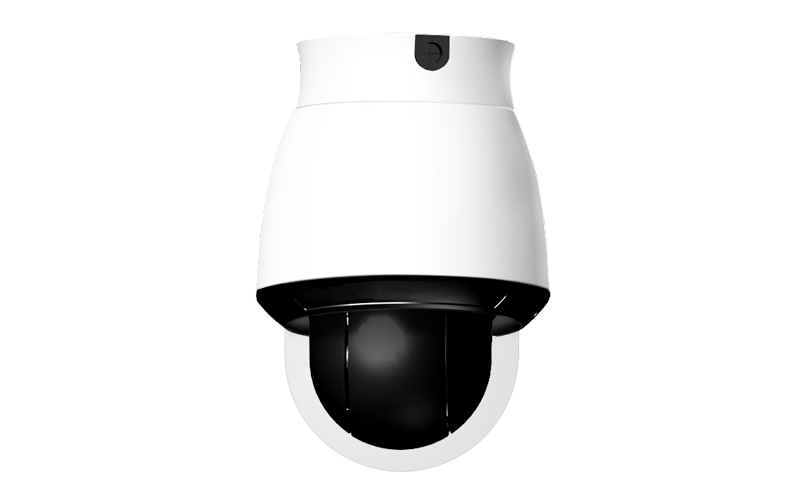

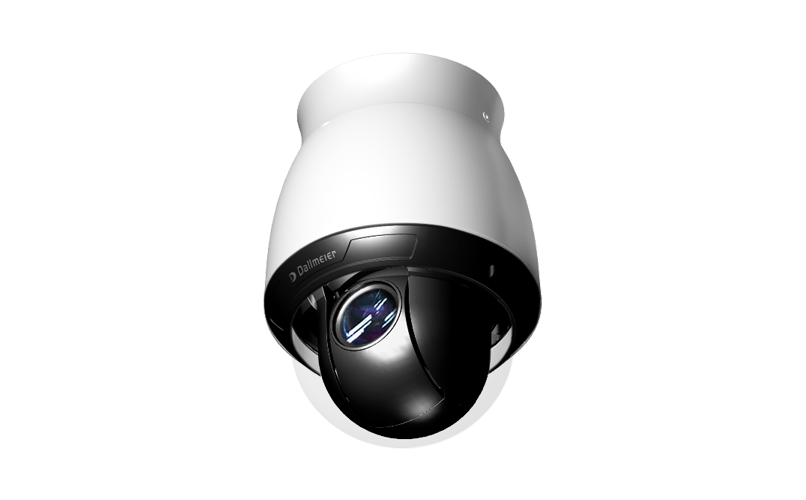

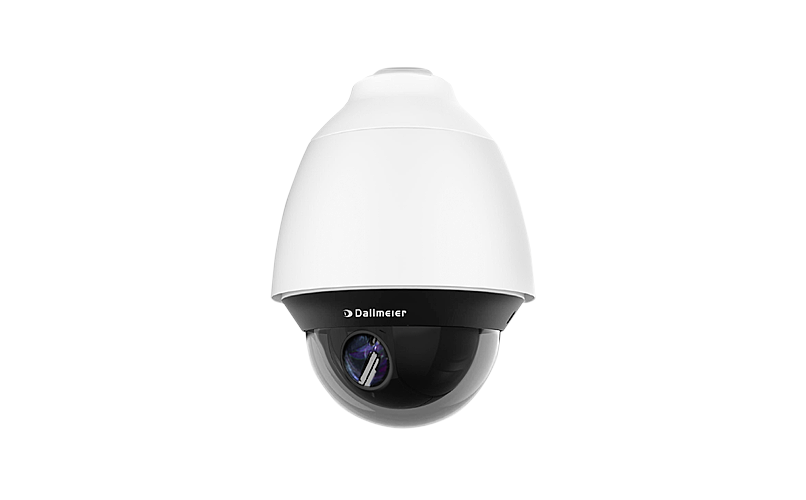

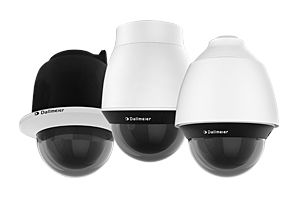

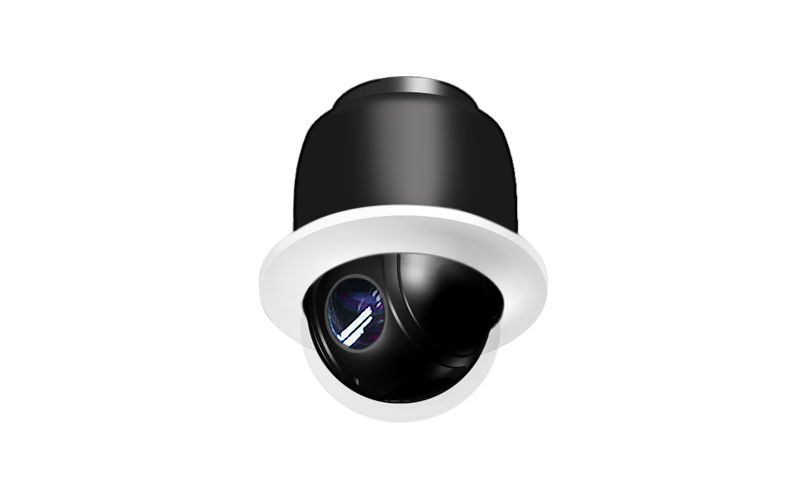

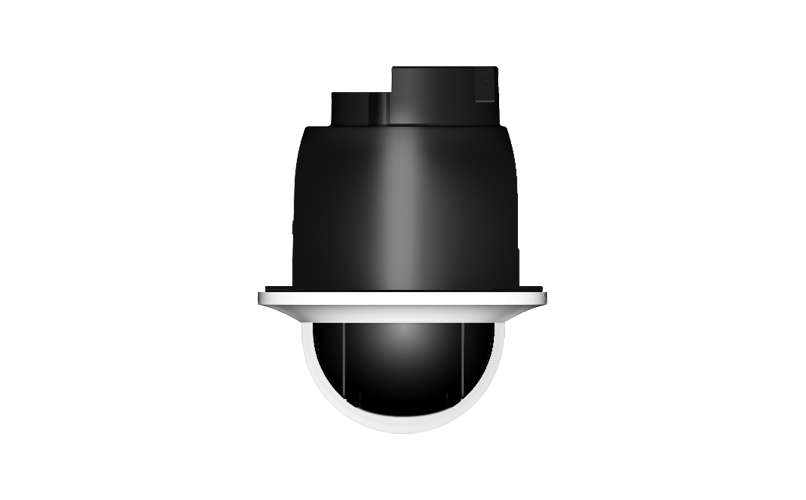

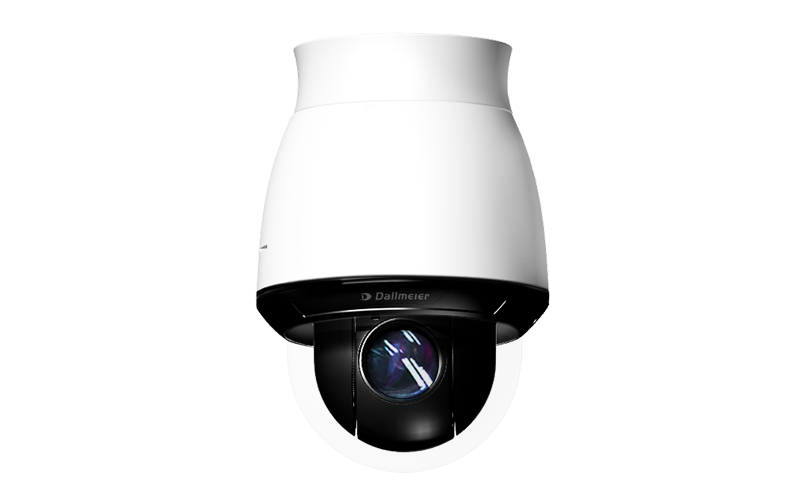

The dome cameras of the DDZ5230DN series are offered in an in-ceiling or surface mount housing for indoor use. Additionally, a robust variant for outdoor use with passive heating is available. All models can be supplied conventionally with an external power supply unit or conveniently Power over Ethernet (PoE+).

Further Features

  • High-speed pan/tilt/zoom mechanism
  • 30× optical zoom with auto-focus
  • Digital image stabilization (EIS)
  • Video compression H.264, H.265, MJPEG
  • EdgeStorage (buffer) or EdgeRecording (two tracks)
  • GDPR-compliant functions for data protection and security
  • Outdoor variant with Passive Heating (waste heat)
  • Compatible with ONVIF Profile S and Profile T
  • Network protocol MQTT supported

Accessories for Outdoor Variant

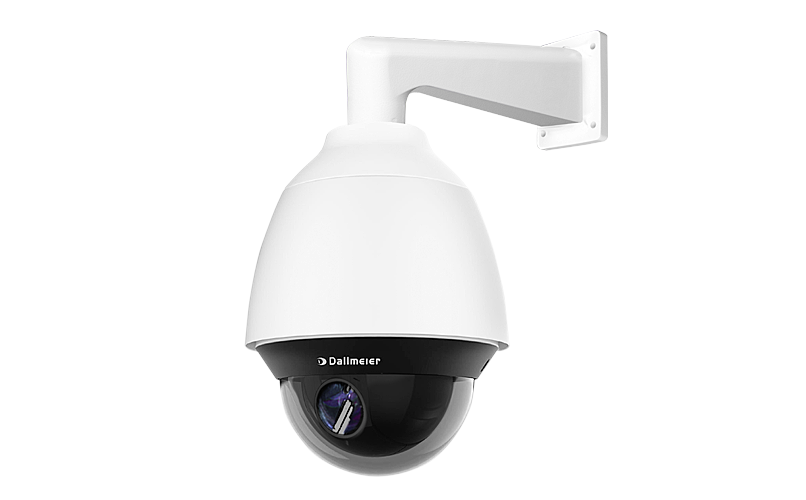

DDZ Outdoor Wall Bracket LDDZ Outdoor Wall Bracket L
Bracket for the installation of a DDZ5230DN outdoor camera on walls, internal cable routing, powder-coated, white
DDZ Outdoor Ceiling Bracket 25DDZ Outdoor Ceiling Bracket 25
Bracket for the installation of a DDZ5230DN outdoor camera on ceilings, internal cable routing, length 25 cm, powder-coated, white
DDZ Outdoor Corner AdapterDDZ Outdoor Corner Adapter
Adapter for the installation of a DDZ5230DN Outdoor camera on corners, compatible with the DDZ Outdoor Wall Bracket L, powder-coated, white
DDZ Outdoor Pole AdapterDDZ Outdoor Pole Adapter
Adapter for the installation of a DDZ5230DN Outdoor camera on poles, compatible with the DDZ Outdoor Wall Bracket L, powder-coated, white
