The VMS with Comfort Search: SeMSy® Compact

Comprehensive control and evaluation of video security systems on a dedicated workstation

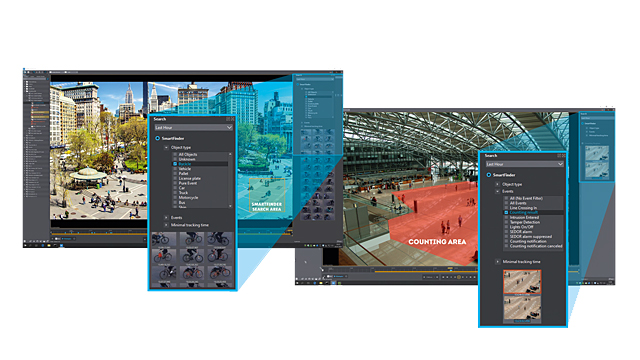

Screenshots of photo editing software displaying image libraries and editing tools, featuring a cityscape and a large open indoor area.

SeMSy® Compact is a stand-alone video management software for the comprehensive control and evaluation of video security systems on a dedicated workstation.

In addition to the fast and intuitive display of live views, the integrated functions support efficient evaluation of recordings.

Overview

Functions
SeMSy® Compact offers a variety of functions for the management of the entire system. These range from integrated user administration to functions for creating and managing local backups with the integrated backup manager.

Comfort Functions
SeMSy® Compact offers comfort functions that allow relevant sequences to be found quickly and conveniently on the basis of analysis data. The advanced SmartFinder function displays search results with preview images and enables filtering based on the available analysis criteria. The relevant sequences are also clearly displayed in the timeline. The operator can thus conveniently compare the search results and display the sequences he is looking for by drag & drop.

AutoTracking
The optional SeMSy® Compact AutoTracking function uses the VCA data of Dallmeier network cameras and Panomera® systems. While the video stream is displayed (live and playback), the analysis data allows the detection of image areas with moving persons or objects. These areas are displayed optimally zoomed in a detail split and ensure a targeted attention control during the evaluation.

AI Pixelation
SeMSy® Compact allows optionally and in combination with the Deep AI object classification on Dallmeier cameras and Panomera® systems the pixelation of objects (persons, vehicles, etc.) during the display of a video stream. The function is available for both live images and recordings and can be activated for a defined user group.

Dashboard
The optional SeMSy® Compact Dashboard displays the VCA data of the event types Line Crossing, Intrusion Detection and Object Counting of Dallmeier network cameras and Panomera® systems in a separate window as a bar chart. In addition to a basic overview of all events, individual cameras can be selected for the evaluation of the recorded events over the course of the day.

Licensing
SeMSy® Compact is licensed by means of a Client Access License on the connected recording systems. The scope of delivery already includes the license for simultaneous access with basic functions for two SeMSy® Compact clients. For using the Timeline, Interval Jumps and SmartFinder function, the recording system must also have a valid license for the use of comfort functions and maintenance. For the use of the optionally offered extended functions, a SeMSy® Compact Pro Dongle is required.

Maintenance
New versions of SeMSy® Compact are always offered as a full installation, which can be executed without further action. For the update of the optionally offered extended functions, a SeMSy® Compact Pro Dongle is required. It already contains a 12-month license for the update of the extended functions. This license can be extended ex works but also subsequently by another 12 months up to a total of 60 months.

Further Features

Split definition function for Panomera® supported
Corridor mode function for Panomera® supported
Overview mode function for Panomera® supported
Zoom with overview function for Panomera® supported
Backup Manager function supported
SmartZoom function for PRemote-HD supported
Compatible with SeMSy® Recording Server

System Requirements

Dallmeier Workstation 4 (Basic) or comparable:

6-Core 2,1 GHz CPU
16 GB DDR5 RAM
512 GB NVMe M.2 SSD
NVIDIA GeForce RTX 3050 GPU
Min. screen resolution 1920 × 1080 px
Windows 10 and 11 Pro operating system (64 bit)

Files

The Video Management Software: SeMSy® Compact

Finding relevant events in the shortest possible time – this is what most video surveillance scenarios are about. Therefore, in addition to good analysis functions, security managers need above all a powerful tool to obtain results efficiently from the metadata generated.

The video management system “SeMSy® Compact” from Dallmeier comes with a completely revised “SmartFinder” functionality that offers “comfort search” with a whole range of functions.

SeMSy® Compact is particularly designed for surveillance managers in small to medium-sized organizations.

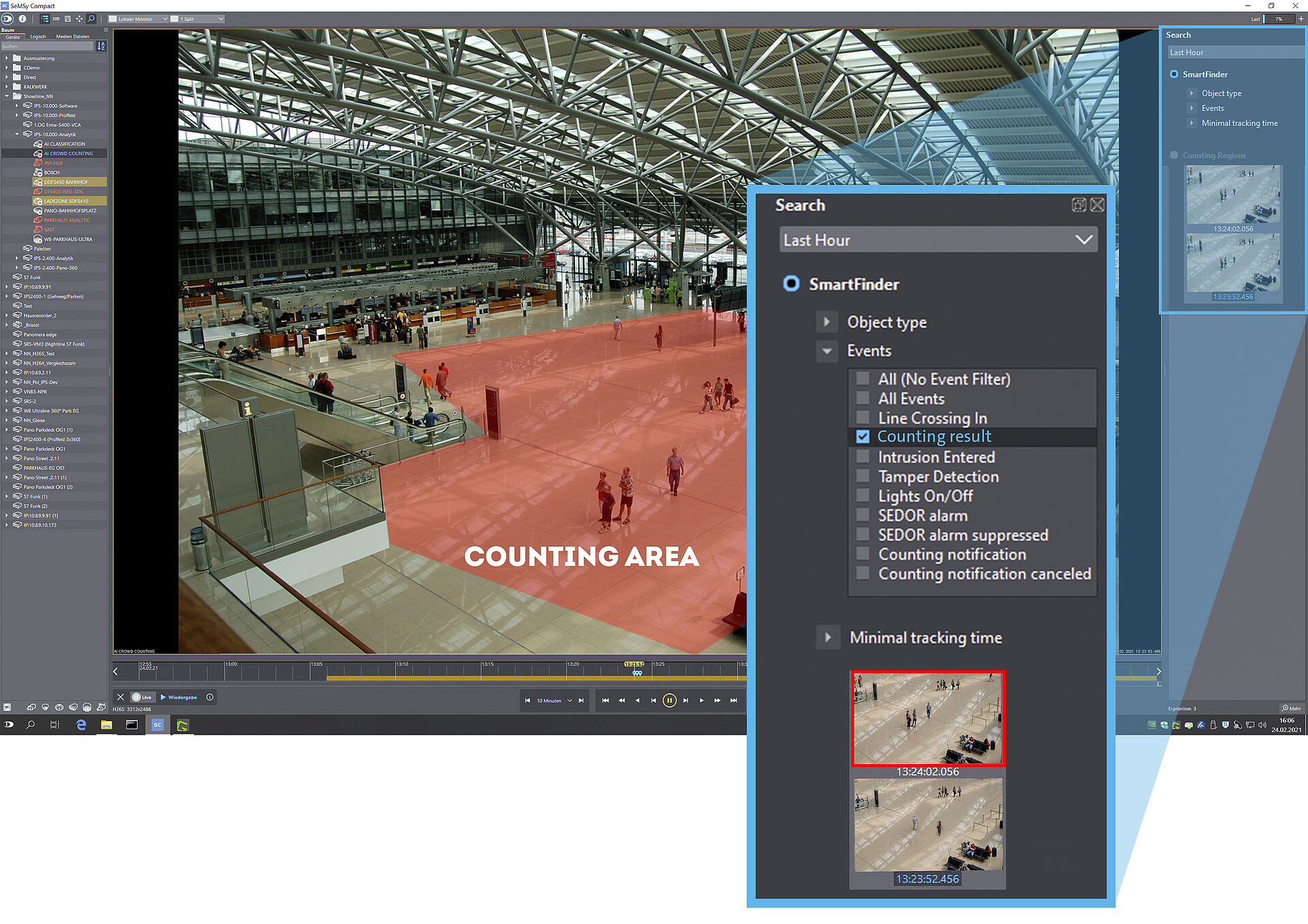

Video Management System Screenshot Search Event Type

Comfort Search
Quickly find relevant sequences

Pixelation
Of motionless objects as well

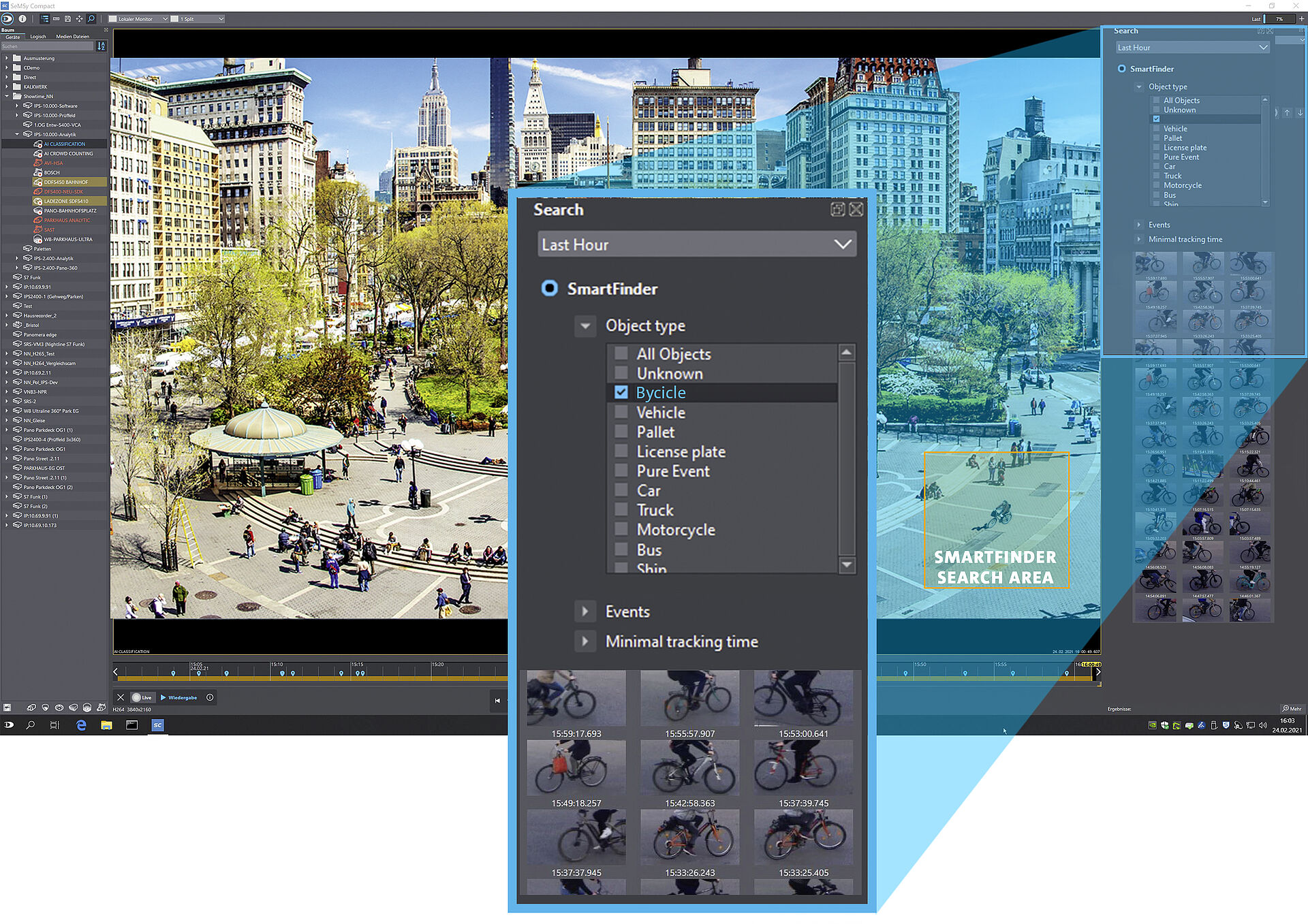

Video Management System Screenshot Search Object Type

Analysis
Count values, events, and objects

Dashboard
For analysis data

Quickly find what is important.

Only if surveillance managers can quickly find relevant sequences, can they successfully contribute to the investigation of criminal offenses, verify events, or perform efficient claims management.

Modern video technology offers a wide range of possibilities for analyzing video images and automatically detecting suspicious or relevant events. Whether classic Video Content Analysis (VCA) messages, standardized neural networks, or customized AI analysis:

The video management system “SeMSy® Compact” from Dallmeier is the successor to the proven “SMAVIA Viewing Client” and, together with Dallmeier cameras and recording systems, offers a whole range of innovative assistance systems to use this data as effectively as possible.

Quick. Simple. Effective.

SmartFinder

Search with thumbnails and timeline flags

By counts, events, and objects

From any data source: classic in-camera VCA to AI analysis to dedicated AI servers

AutoTracking

For focused attention guidance during live observation and evaluation

Automatic detection of areas with movement

Display in detail splits with continuous adjustment of the zoom

AI Pixelation, Dashboard

True data protection through pixelation of even motionless persons

Dashboard function for quick situation assessment due to charts of the analysis data

SmartFinder

“Comfort Search” with SmartFinder

The advanced SmartFinder function displays search results with preview images and allows filtering based on available analysis criteria such as AI object groups, counting results and others.

AutoTracking

Targeted Attention Control

The optional SeMSy® Compact AutoTracking function allows the detection of image areas with moving persons or objects. These areas are displayed optimally zoomed in a detail split and ensure a targeted attention control during the evaluation.

AI Pixelation

Pixelation of Moving and Still Objects with AI

The optional SeMSy® Compact AI Pixelation function allows the pixelation of moving and nonmoving objects such as persons or vehicles. Pixelation can be performed both in live images and recordings and can be activated for defined user groups.
